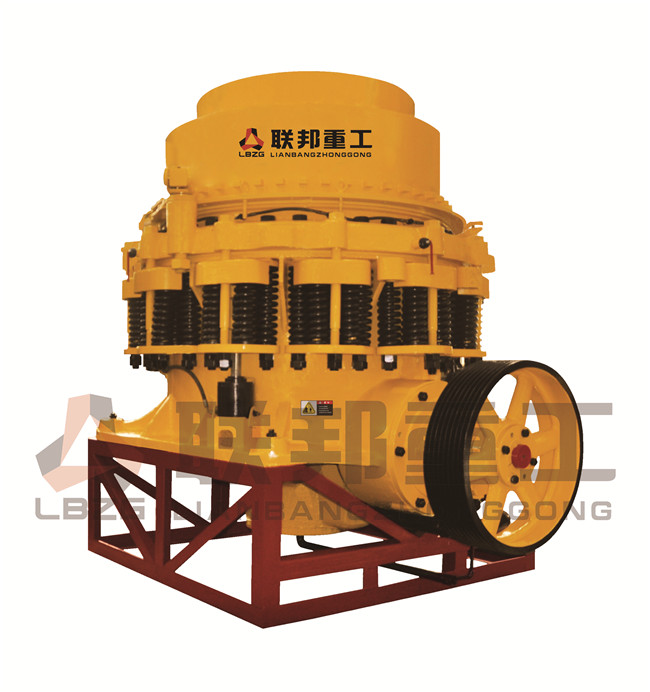

CS Series Cone Crusher Stone Crusher Machinery

CS Series Cone Crusher Stone Crusher Machinery

BRIEF INTRODUCTION

Symons cone crusher with high-efficiency and hydraulic pressure was widely used in mining, concrete factory, sand stone making, etc. The machinery's pressure resistance strength is under 350Mpa. Symons cone crusher is widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, ironstone, basalt, etc.

WORKING PRINCIPLE

Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening. During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

FEATURES

1. Reasonable structure, reliable performance, stable operation, high cost performance.

2. Broken than large, high output, low abrasion.

3. High strength cast steel frame, stronger intensity.

4. Reliable sealing, prolong service life.

5. Hydraulic chamber, easy to operate.

6. Adjustment of the machine by the hydraulic system operation, more fast, more easily.

7. Coarse, medium and thin, fragile composite cavity type many, the space is large.

8. Prophase investment is high but operation cost is low.

ADVANTAGES

1.Excellent technical craft, high yield and low failure rate. In the long term, it has low operating cost and better cost performance.

2.High strength cast steel frame, stronger intensity.

3.Composite cavity which includes coarse, medium and fine to satisfy customers’ different needs .

4. CS cone crusher uses sealing ring to prevent the bearings from stone powder which could prolong the service life of the bearings.

TECHNICAL PARAMETERS

Comparing with other kinds of crushers, CS Series spring cone crusher is quite excellent in hard material crushing and the final product has good sharp. The innovations like stable lubrication system and excellent sealing system evidently reduce the production cost, helping you to achieve the highest level of profitability.

FEATURES

High yields and high grade final products.

With grease seal and upstage sealing element imported from Japan, provide sturdy guarantee for long-playing stable operation of machine.

Overload protective system can effectively ensure safety of crusher.

Easy to control discharging size by using different crushing cavity and adjusting device.

APPLICATION

CS series cone crusher is applied to cement mill, mining, building construction, road &bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.

SALES SERVICE :

Pre-sales service: Design and Budget suggestion (FREE)

After-sale Service: Installation and Debugging (Engineers available to your working site)

1. We guarantee our reply in 24 hours of working day.

2. Our engineers will communicate with our customers in different languages to help them to solve the technical questions and quality issues.

3. Our professional people will make strict inspection before goods shipment.

4. Punctual shipment time and good after-sales service will be guaranteed.

5. Our Warranty is 1 year for whole machine except wearing spare parts.We will provide the technical advice and

find the solution immediately for you when the machine is in trouble shoot. For wearing spare parts, we guarantee

the high quality parts for long-time supply.

As there are many different kinds of stone crusher line machines, to offer you  one most suitable machine, pls kindly help us check below datas, which will be good for your investment in coming days:

1. Crushing materials: river stones, granite,limestones,basalt,or other hard/soft mateials.

2. Largest input size: the largest size of the crushing materials before putting into the machine-1000mm,800mm,500mm,etc.

3. Output size: the final size you need of the crushing materials after being crushed-0-5mm,5-10mm,10-20mm,etc.

4. Capacity per hour: production capacity per hour needed- 50t/h, 100t/h, 200t/h, etc.
