Heavy Duty Two Heads Calibrate Sander Machine with Conveyor Line
1. Aotomatic Sanding Conveyor Line
2. Product Features
1. This calibrating sander machine is mainly used for thickness calibrating plywood,particleboard, MDF etc.
2. Overall welding frame structure, long service life, high rigidity.
3. Big sanding roller diameter, accurate dynamic balancing,high precision. ensures good sanding performance.
4. Multiple safety design, safe and reliable.
5. International brand advanced electrical components, less trouble, more stable.
3. Technical Parameters
| Model. No | BSG1213R-R |
| Sanding width | 40-1300mm |
| Sanding thickness | 2.5-80mm |
| Sanding length | >=780mm |
| Sanding belt linear speed | 25m/s |
| Sanding belt size | 1300*2620mm |
| Motor power of sanding belt | 55kw 45kw |
| Lifting motor power of platform | 0.75kw |
| Motor power of brush rollers | 0.75kw |
| Panel in-feeding speed | 20-40m/min |
| Motor power of conveyor | 11kw |
| Motor power of conveyor reducer | 7.5kw |
| Total motor | 109kw |
| Operating pressure | 0.6MPa |
| Dust extraction | 15000m³/h |
| Dimension | 3030*2900*2440mm |
| Weight | 8100kg |

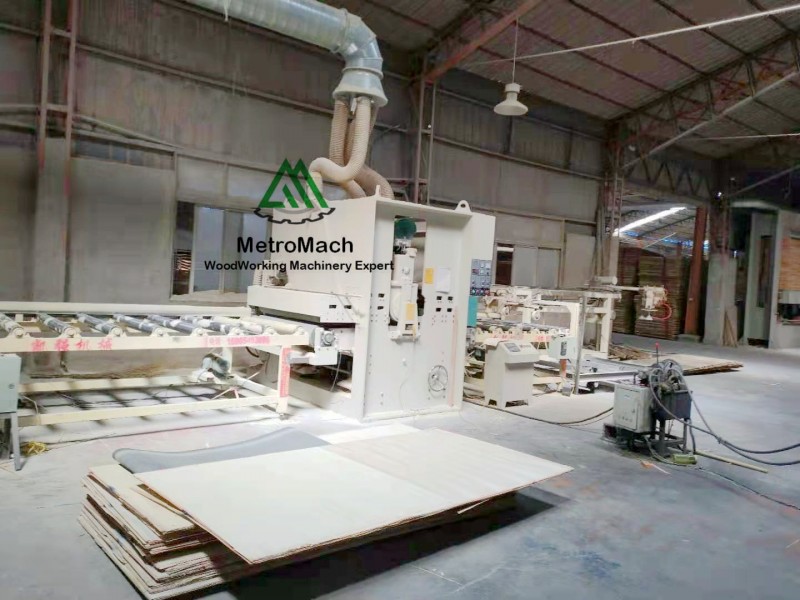

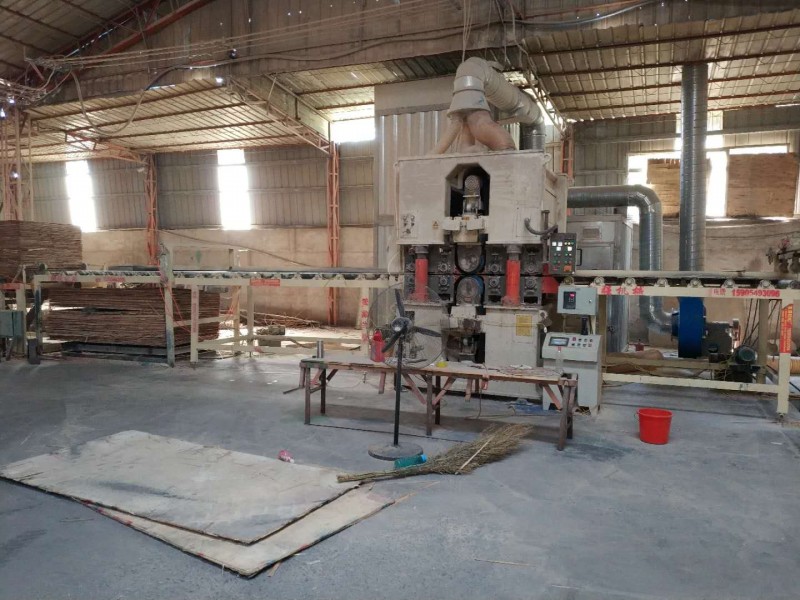

4. More Pictures
