Aluminum Corrugated Composite Panel (ACCP) is a new kind of environmental product for wall cladding，inside decoration, ceiling and signage etc. With raw material high strength aluminum alloy 3003H16-H18, ACCP is produced by advanced automatic production equipment under ERP system management. Water wave shape is made by cold pressing on the same production line, using thermosetting dual structure resin adhere to face and bottom aluminum, which enables ACCP to own highly stable adhesive ability.
|
Specification:
|
|
|
Top Aluminum thickness |
0.4mm-1.0mm |
|
Aluminum core thickness |
0.15-0.3 mm |
|
Bottom Aluminum thickness |
0.25-0.50 mm |
|
Total panel thickness |
3 mm, 4mm, 6mm, 10mm |
|
Width |
1220mm, 1250mm, 1500mm |
|
Length |
Less than 8000mm |
Characteristics:
1. Class A2 Fire-Retardant
2. Environmental Protection
3. Light Weight
4. Sound Insulation
5. Heat Insulation
6. Durable and Economic
7. Excellent Flatness
8. Easy Process and Installation
9. Color Uniformity and Easy Clean
Application:

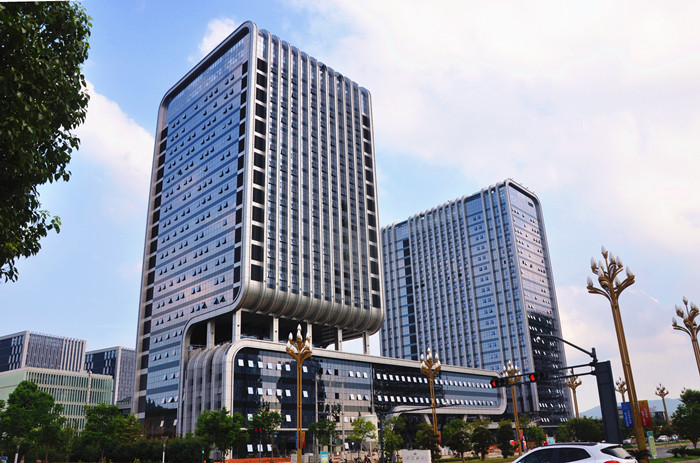

Constructional exterior curtain walls;
Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;
Advertisement board, shop face decorating, display platforms and signboards etc
