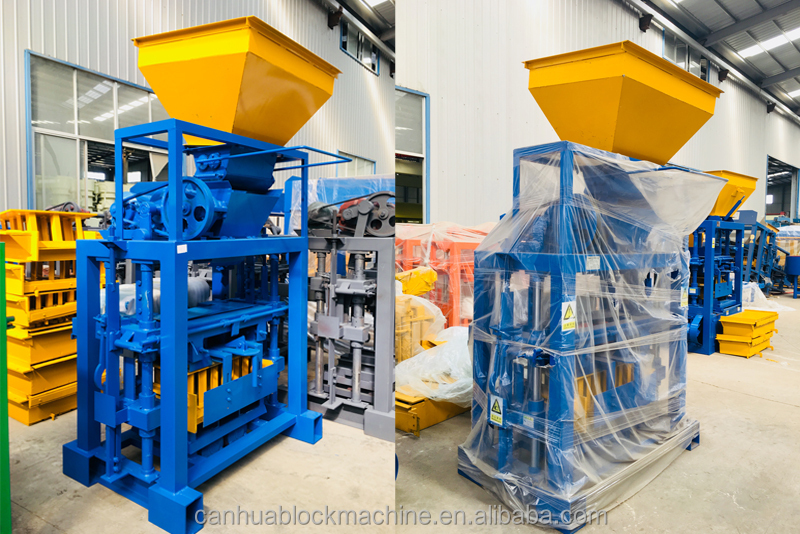

QT40-1 china small cheap semi automatic concrete hollow block brick making machine
1.Introductions of QT40-1 Burning Free Brick Making Machine:
QT40-1 brick machine is a low cost cement brick making machine, it is also a concrete block moulding machine.
With strong structure and simple operation, it is your best choice to start your hollow block/solid block/road paver block factory.
1).This hollow brick block making machine needs electricity as power source. A stable power supply is required. Otherwise you need diesel generator.
2).QT40-1 is a successful machine model, widely used in China and overseas, like USA,AFRICA,EAST ASIA,ETC.
3).The raw material includes crushed stone,sand,cement,water.All these are blended in mixer with a certain ratio.
The ratio is 50%/40%/9%/1%,then you get the qualified concrete,which are molded into brick/block by QT40-1 brick machinery.
4).To increase the production capacity, you need buy the belt conveyor,mixer.These three machines to set up a simple concrete hollow brick block production line.
Check below picture, see how it works.
THIS IS BURNING FREE CEMENT BRICK MACHINE,MEANS NO NEED BURNING AFTER BRICK IS MOLDED.
1.Main Technical parameter
|
Dimension of host machine |
1350x14601800MM |
Total machine power |
8.8KW |
|
Mould period |
40S |
Vibration force |
30KN |
|
Pallet size |
850x45025MM |
Mixer Model |
JQ350 |
|
Workshop area |
60m2 |
Weight |
1.1T |
2. Concrete Mixer
|
Model No. |
JD350 |
|
Feeding volume |
560L |
|
Discharging volume |
350L |
|
Productivity |
≥4cubic meter per hour |
|
Blending blade |
3 pcs |
|
Working method |
Drived by electric motor |
|
Power |
7.5kw |
|
Overall dimension |
1.25×1.25×1.3M |
|
Total weight |
400KG |
3.Concrete Block Samples Productivity
This small block machine can make hollow blocks with groves at both sides. Also can make pavers, normal gardening pavers are also available.
|
Size (LxWxH) |
Picture |
Pcs/mould |
Pcs/Hour |
Pcs/Shift |
|
400x100200MM |
|
7 |
280-380 |
4000-5040 |
|
400x150200MM |
5 |
360-450 |
2880-3600 |
|
|
400x200200MM |
|
4 |
280-380 |
2240-2800 |
|
400x250200MM |
3 |
220-270 |
1760-2160 |
|
|
Holland paver |
|
14 |
1600 |
12800 |
|
"S" Paver |
|
8 |
720 |
5760 |
| "I" Paver |
|
8 | 720 | 5760 |
(1) Packing: Our packaging is safety export package (wood box) for LCL, Nude package for full container or according to Customer's request.
(2) Shipping: Finished produce the machine in 20-25 days after we receive your deposit, delivery the machine in 10 days after receive your balance payment.
(3) Payment: We accept T/T, L/C, Money Gram, West Union, etc. payment method, all can negotiate.
(4) Service: We supply full line top service from get your inquiry to install the brick maker machine. We supply you free installation machine, free training your workers and one set free spare parts. Our engineer can go to your site design the factory for you.
If you need some other supporting facilities, please tell us what do you want and we will offer you a nice quotation.
