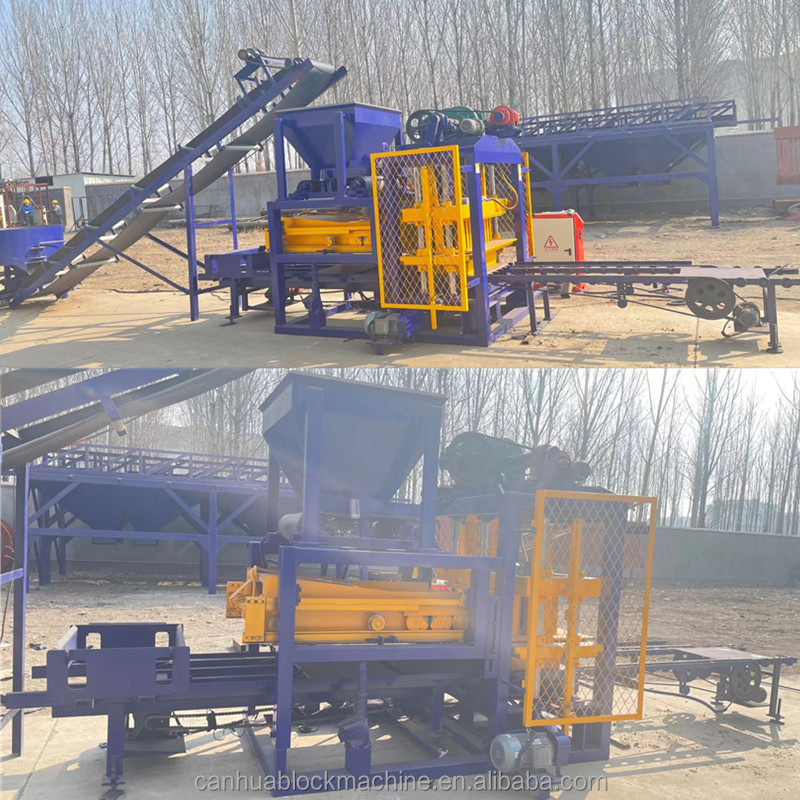

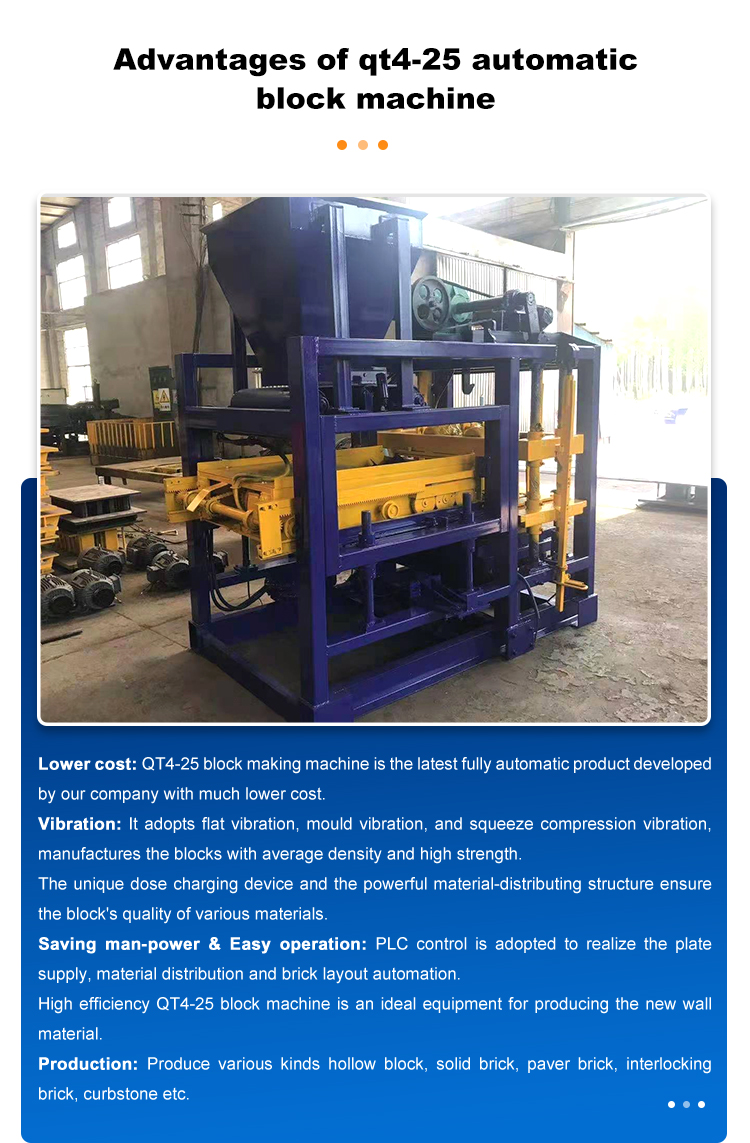

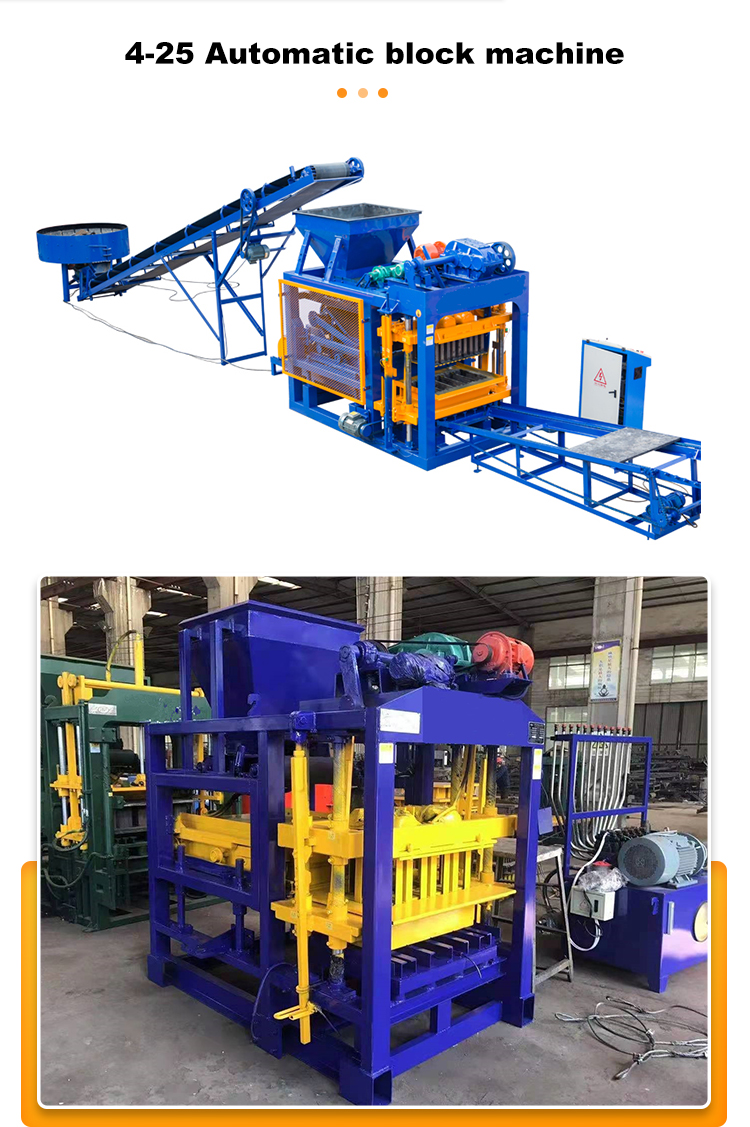

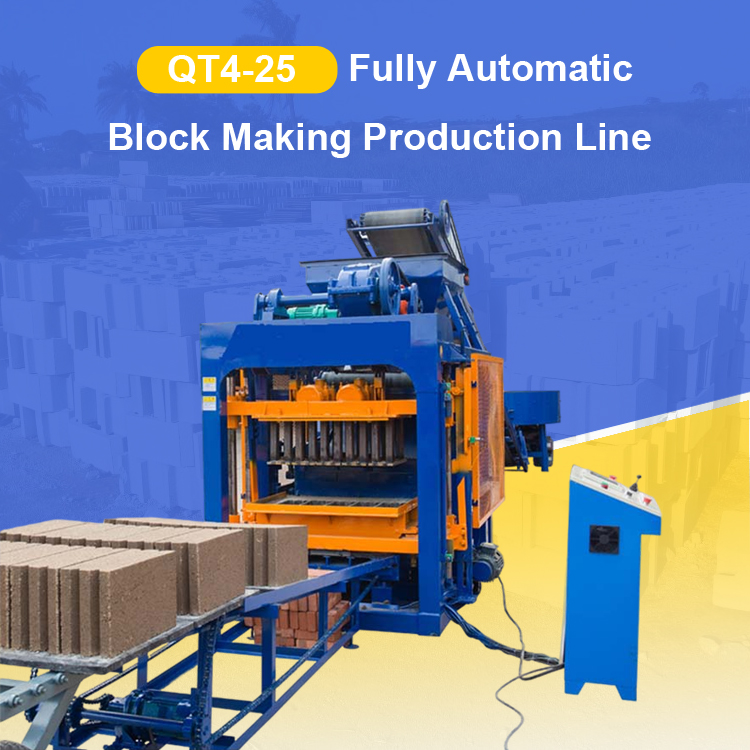

QT4-25 fully automatic concrete hollow insulated brick block molding machine production line
Brief Introduction
(1).Wall block: 5000-8000 Pcs/ 8 H
Paver: 9000-16000 Pcs/ 8 H
(2). Block plant investment amount range: 11000-15000 USD
(3). Suitable for Medium and Small-scale Block Factory
(4). Professional manufacturer: Produce any sizes and shapes of molds as you want
(5). Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
(6). Factory Area : 1000-1500M2
Shelter Area; 60M2 (10*6m)
(7). Pallet Number for QT4-25 automatic block making line: 1000 pallet . Sancidalo Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.

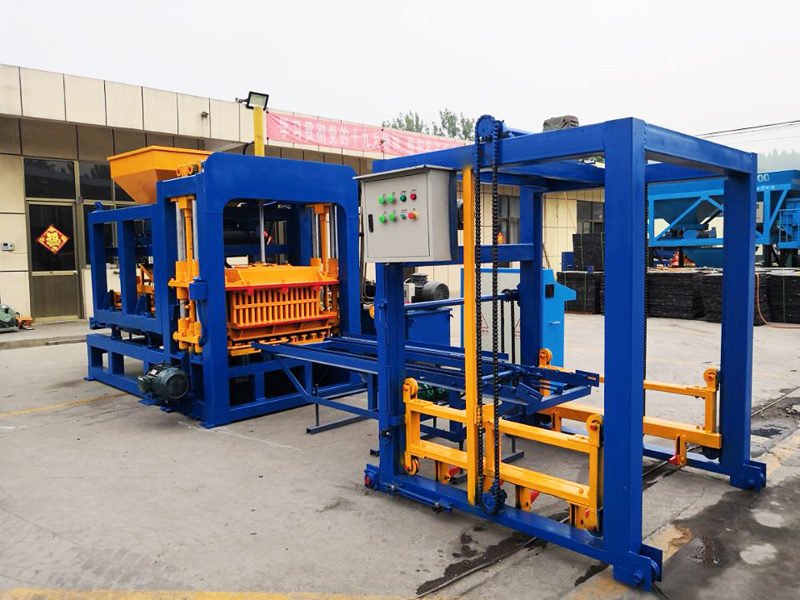

1.Main Technical Specifications
|
Model |
QT4-25 Fully automatic block machine |
|
Overall Dimension |
26001600x2200mm |
|
Weight of host machine |
3000kgs |
|
Vibration force |
45KN |
|
Main vibration form |
Platform vibration, mould vibration etc. |
|
Cycle Time |
25-30s |
|
Vibrating Frequency |
2800-4500 rolls/minute |
|
Motors Power |
13.5KW |
|
Pallet Size |
850550mm |
|

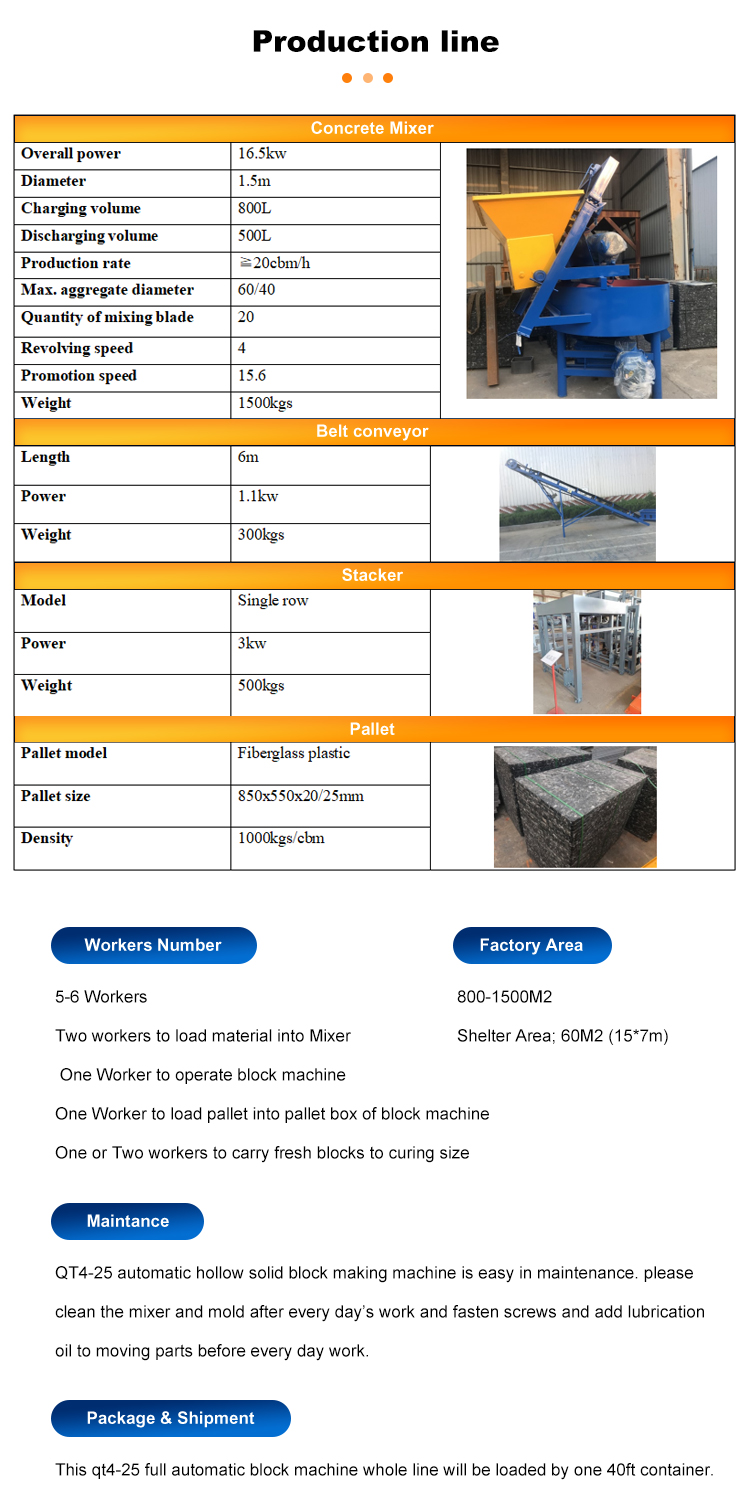

Mixer |
JD400 with lifting hopper |
|
Belt |
6m Belt conveyor |
|
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
|
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without color mix on surface, garden and landscaping products, slabs, edgers, curbstones, grass blocks, slope blocks, interlocking blocks, etc. |

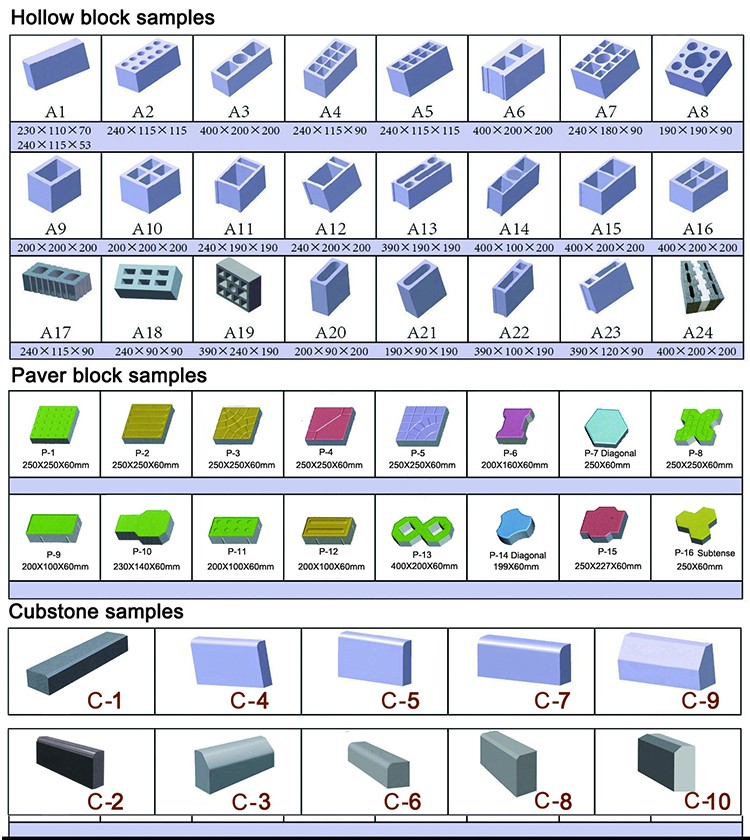

2.Theoretical Productivity
| Item | Block | Production capacity | Photo |
| 1 |
Hollow/Solid block 400-200-200mm |
4 pcs/mold 4608 pcs/8h |
|
| 2 |
Hollow/Solid block 400-150-200mm |
5 pcs/mold 5760 pcs/8h |
|
| 3 |
Hollow/Solid block 400-100-200mm |
7 pcs/mold 8064 pcs/8h |
|
| 4 |
Houdi block 500-120-200mm |
6 pcs/mold 6912 pcs/8h |
|
| 5 |
S shape paver 225-112.5-60mm |
12 pcs/mold 13824 pcs/8h |
|
| 6 |
I shape paver 200-160-60mm |
8 pcs/mold 9216 pcs/8h |
|
| 7 |
Holland paver 200-100-60mm |
14 pcs/mold 16128 pcs/8h |
|
