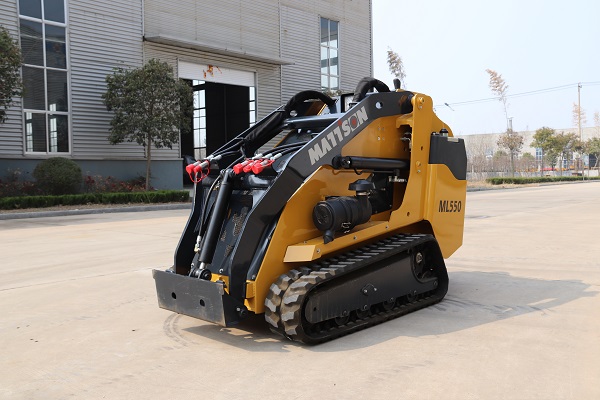

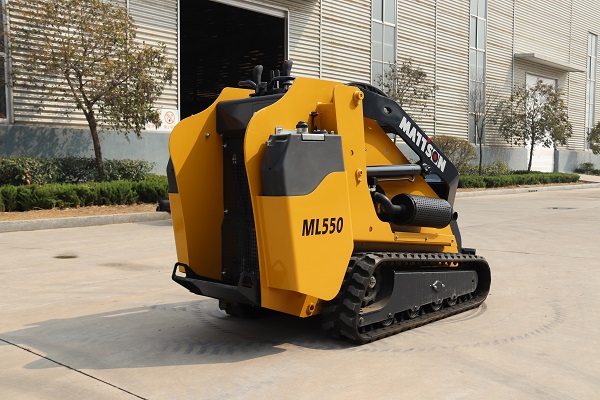

China Mini track skid steer loader with Kubota or Kohler diesel engine for sale
Excellent Performance:
♦. Specially designed for short runs and operation in confined places, Mattson ML550 offers operators a new level of performance and versability;
♦. With quick connects and an arsenal of available attachments, mini skid steer is ready to tackle a variety of jobs with ease;
♦. Equipped with a nearly 2m dump height, the mini loader saves labor and time;
♦. Compact and flexible design makes it quite easy and convenient to operate, maintain and repair.
Kubota or Kohler diesel engine, water cool, 4 cylinders, for option
Optional attachments:
Standard bucket, mini digger, grapple fork, 4 in 1 bucket, sweeper,
Hydraulic breaker, auger, angle blade, pallet fork, snow blower,
Lawn mower,trencher, etc.
|
ITEM |
UNIT |
DATA |
|
MAIN SPECIFICATIONS |
||
|
Length (Including bucket)*Width*Height |
mm |
2824*1250*1505 |
|
Length (No Including bucket)*Width*Height |
mm |
2202*1100*1505 |
|
Travel speed |
Km/h |
7.2 |
|
Bucket capacity |
m³ |
0.2 |
|
Bucket width |
mm |
1250 |
|
Max. Operating height |
mm |
3263 |
|
Rated load |
kg |
381 |
|
Wheel base |
mm |
1170 |
|
Tread width |
mm |
1100 |
|
Ground clearance |
mm |
150 |
|
Dumping reach |
mm |
614 |
|
Height to bucket pin |
mm |
2478 |
|
Rollback angle of bucket at max.height |
° |
100 |
|
Rollback angle of bucket on ground |
° |
18 |
|
Dumping angle at max.height |
° |
30 |
|
Angle of departure |
° |
22 |
|
Dump height |
mm |
1939 |
|
OPERATION SPECIFICATIONS |
||
|
Operating weight |
kg |
1650 |
|
System Relief @ Quick Couplers |
bar |
210 |
|
Front turning radius(Including bucket) |
mm |
1738 |
|
Carry Position |
mm |
178 |
|
Ground Clearance-under platform |
mm |
160 |
|
Tipping Load (SAE) |
kg |
1088.6 |
|
ENGINE |
||
|
Make |
|
Kubota V2403 |
|
Fuel / Cooling |
|
Diesel/Liquid |
|
Rated power |
HP |
50 |
|
Maximum Governed RPM |
RPM |
2600 |
|
Fuel (fuel capacity) |
L |
65 |
|
Number of Cylinders |
|
4 |
|
Displacement |
L |
2.434 |
