Click the picture to view the original image

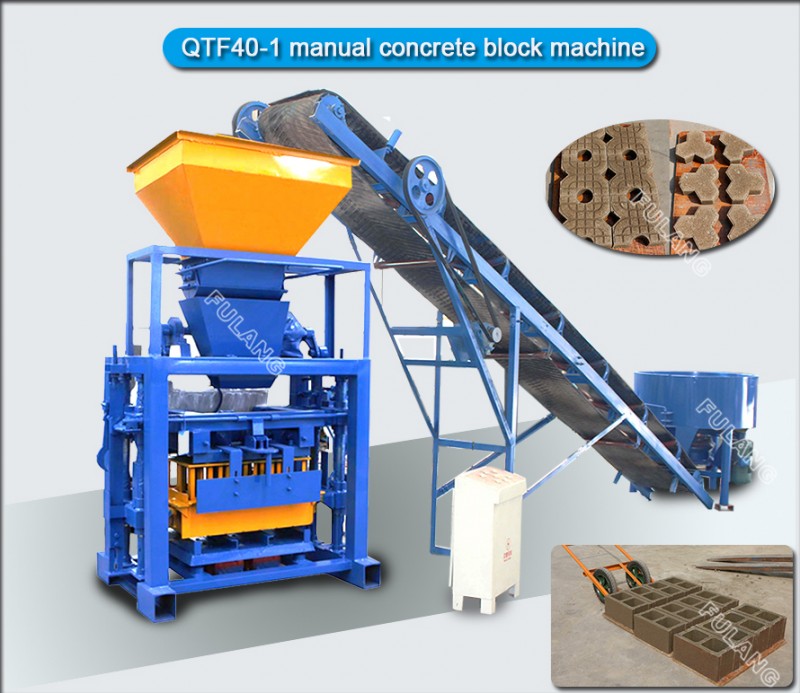

1. QTF40-1 multifunction block making machine can produce various solid blocks, hollow blocks and pavers by changing moulds.
2. Vibration moulding technology is adopted to FL40-1, so the machine can produce high quality blocks that are smooth and strong in a very short time.3. The moulds adopt precise wire cutting technology and carburizing treatment technology, these techniques increase the service life of the mould.
4. This machine is simple in structure, it is easily to operate, and it has low electricity consumption.
5. This machine can produce 1760-5040 pieces blocks per day.

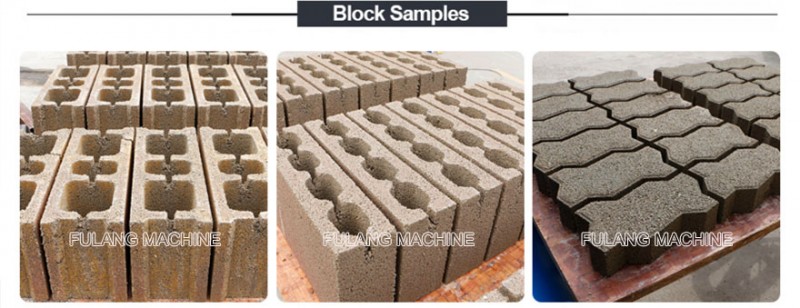

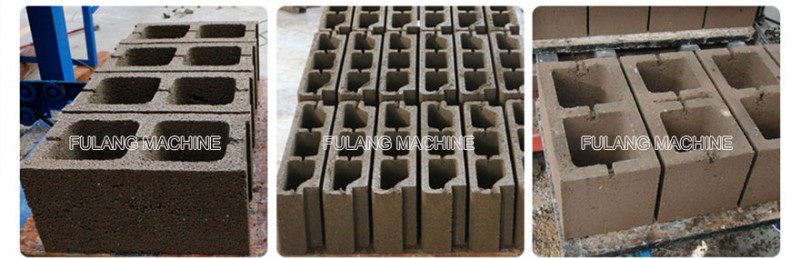

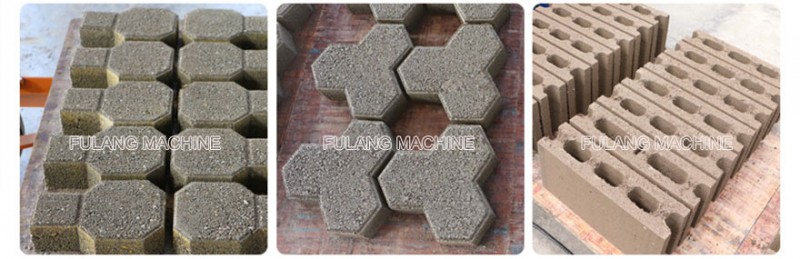

Concrete fly ash hollow brick block making machine can produce various different concrete hollow blocks, solid blocks and paving blocks by changing molds. The following bricks are common brick types. Also we can customize brick moulds for you on base of your specific requirements.
| Main technical parameter | |||
| Dimension of host machine | 1350*1460*1800mm | Voltage | Adjustable |
| Shaping cycle | 30s | Host machine power | 17.4KW |
| Vibration force | 30KN | Weight of the machine | 2500kg |
| The size of pallet | 850*450*30mm | Mixer model | JQ350 |
| Theoretical production capacity | |||
| Size (L*W*Hmm) | Pcs/Hour | Pcs/Mould | Pcs/Shift(8h) |
| 400*150*200mm | 360-450 | 5 | 2880-3600 |
| 400*200*200mm | 280-360 | 4 | 2240-2800 |
With 20 years development , our products have been sold to more than 80 countries.Till now, about 1200 customers have visited our factory. Also we have engineers stay abroad to help you install the machines and training your workers at your side.

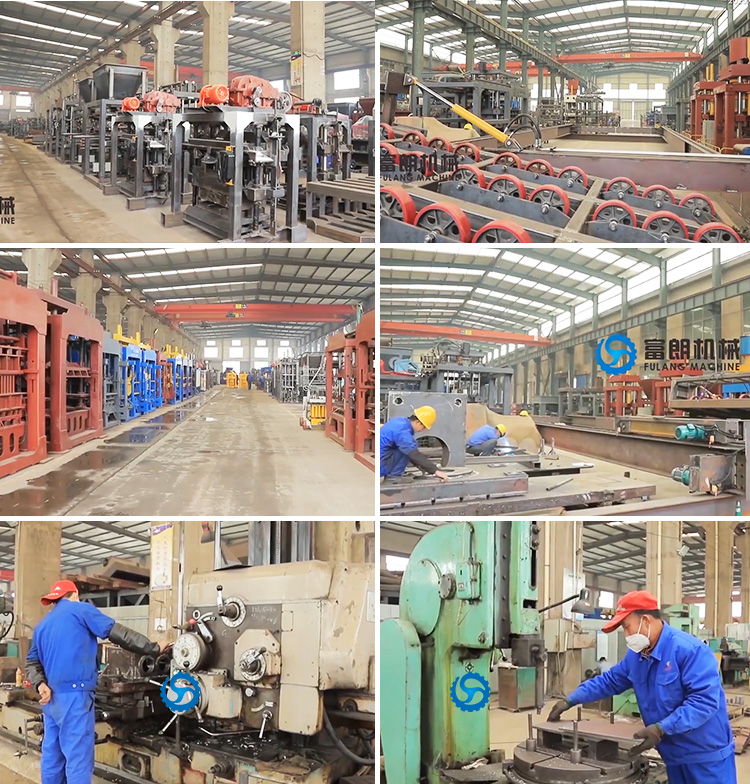

FULANG Machinery Group Co. Ltd is a Chinese manufacturer of dedicated machinery for construction blocks and panels. Our company offers complete production lines for premium building components such as the autoclaved sand -lime brick, autoclaved aerated concrete brick, and autoclaved aerated concern autoclaved lightweight concrete panel. Additional, we provide various types of pressure vessels and block-making machines. By choosing FULANG,customers can enjoy professional benefits with our dedicated services for design, install, layout planning, technology transfer,and production guidance.
