Features and benefits:
1.Large touch screen interface, easy operation.
2.Quartz heating tube, uniform temperature field.
3.New lightweight thermal insulation material, good heat preservation.
4.High-precision temperature control and automatic temperature control .
5.Oil-less vacuum pump, high vacuum limit,free maintenance.
6.Vacuum pipe with multi-layer filter structure can ensure the stability and life-pan of related components.
7.Night insulation function.
8.Unique vacuum process to ensure excellent vacuum sealing.
9.Touch screen calibration function.
10.Temperature calibration procedure.
11.Super anti-power interference,instantly to 94V
technical parameters:
Product name and model

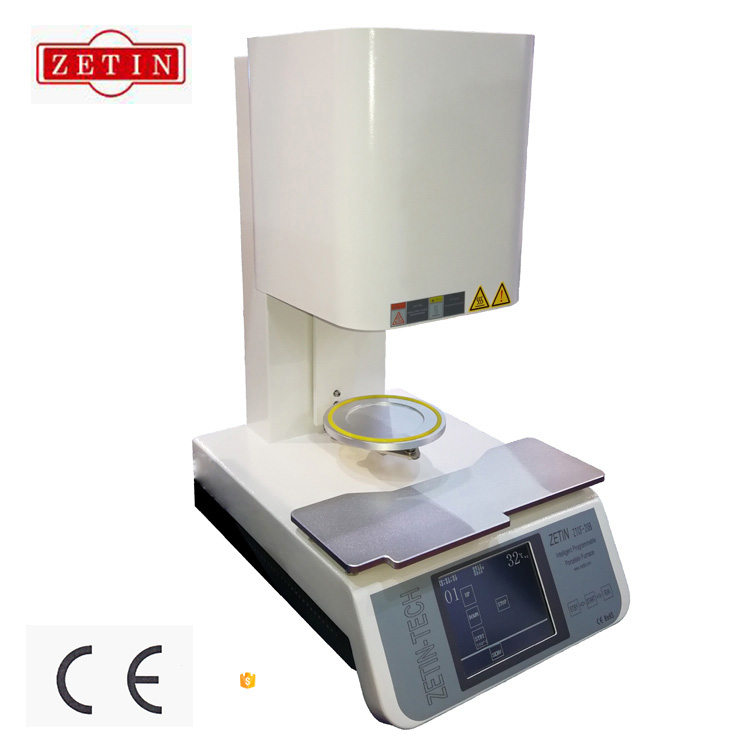

Porcelain furnace ZTCT-20B
power supply
220V/50HZ 110V/60HZ
maximum termperature
1300°C
heating rate
0-140°C/min.
storage heating segments
100pcs
power
1300W+300W
Max. vacuum degree
-98KPa
firing space
Φ10×7cm
