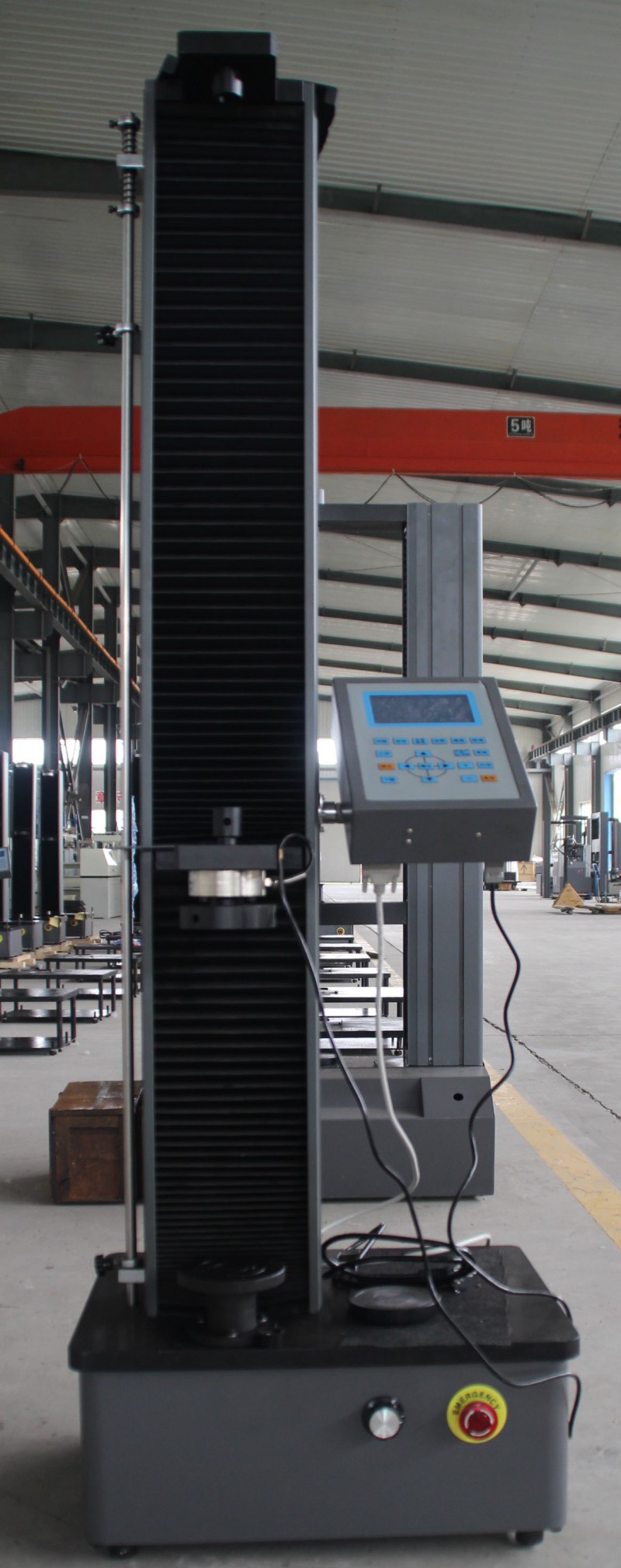

WDW-5 electronic tensile testing machine
Main functions
WD-P1503 is suitable for tensile test of rubber, plastic, electrical wire and cable, composite, plastic profiled bar,
waterproof roll, etc. They may add test methods or rules according to customers’ requirements. They are essential
testing instrument for quality testing section, university and college, research institution and industrial and mining enterprise.
Main Technical Specifications
1. Max Capacity: 5KN
2. Range of testing force: 2%-100%FS
3. Accuracy of force: ≤±1%
4. Structure: Single column
5. Testing speed: 0.002 mm/min -500 mm/min, stepless speed regulation
6. Resolution of displacement: 0.001mm
7. Resolution of testing force: 1/300000
8. Relative error of displacement: ±1%
9. Effective Tension space: 900mm
10. Host size: 500×300×1650mm
11. Power supply: 220V 50Hz;
12. Working environment: Indoors temperature10-30℃, Relative humidity≤80%
