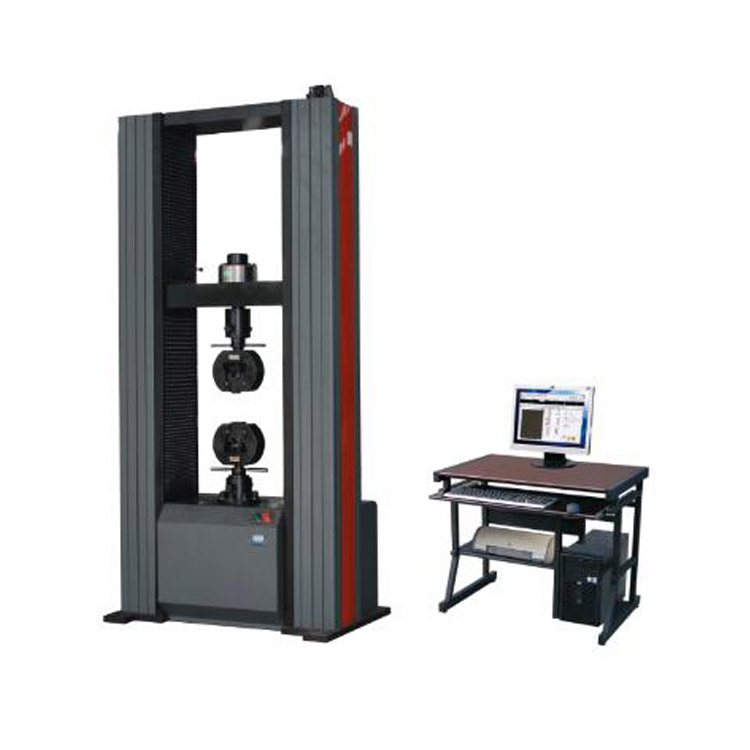

WDW-100 （100KN）
Computer Control Electronic Universal Testing Machine
(Manual Clamping)
main function
This machine is suitable for tensile, compression, bending, shearing and tearing test of rubber, plastic, electrical wire and cable,
composite, plastic profiled bar, waterproof roll, etc. They may add test methods or rules according to customers’ requirement.
They are essential testing instrument for quality testing section, university and college, research institution and industrial and
mining enterprise.
Main Technical Specifications
|
1 |
Max Capacity |
100KN |
|
2 |
Accuracy grade |
1 grade |
|
3 |
Range of testing force |
1%-100%FS |
|
4 |
Accuracy of force |
≤±1% of indicated value |
|
5 |
Structure |
door type with double space |
|
6 |
Testing speed |
0.001 mm/min -500 mm/min, stepless speed regulation, |
|
7 |
Precision of testing force |
error less than ±1% |
|
8 |
Precision of displacement |
0.001mm |
|
9 |
Resolution |
1/300000 of max testing force |
|
10 |
Relative error of displacement |
±1% |
|
11 |
Effective Tension space |
600mm |
|
12 |
Valid test width |
560mm |
|
13 |
Hose size(L*W*H) |
1040×630×2050mm |
|
14 |
Power supply |
220V, 50Hz, 1.5KW |
|
15 |
Clamping method |
Manual clamping |
|
15 |
Range of round clamping: |
Φ4-Φ20mm |
|
16 |
Range of flat clamping: |
0-14mm |
|
17 |
Size of upper and lower plate: |
Φ120mm |
|
18 |
Weight: |
1000kg |
