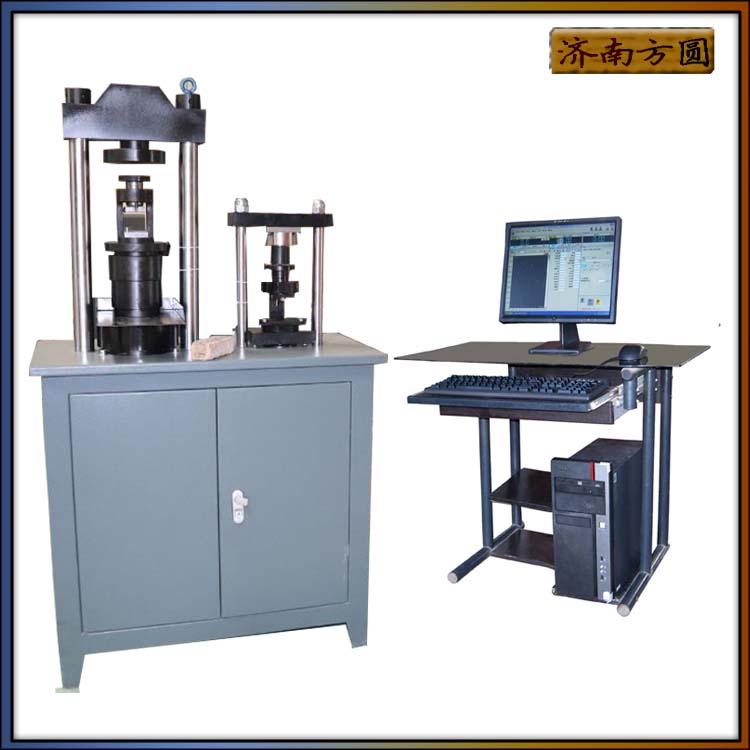

Click the picture to view the original image
Main Function and Usage
1.The model YAW-300C can be used in the compression and bending strength testing of cement mortar
2.Control Method of Testing Rate: Electro-hydraulic closed-loop control
Main Specifications and Technical Parameter
|
Model |
YAW-300C |
|
Maximum Testing Force |
300kN/10kN |
|
Measure Range of Testing Force |
2%~100%FS |
|
Relative Accuracy of Value Display of Testing Force |
≤±1% |
|
Loading Rate(kN/S) |
0.3~10(compression)/50(bending) |
|
Accuracy of Loading Speed |
±5% |
|
Pressure Plate Dimension (mm)) |
Φ155(compression)/ 80150(bending) |
|
Max.Piston Stroke(mm) |
80 |
|
Piston Diameter(mm) |
Φ130(compression)/Φ50(bending) |
|
Max. Hydraulic Pressure(MPa) |
25 |
|
Rated Flow Rate of Oil Pump(L/min) |
1.52 |
|
Motor Power(kW) |
0.75 |
|
Overall Dimension(L*W*H)(mm) |
820×450×1300 |
|
Weight (kg) |
500 |
