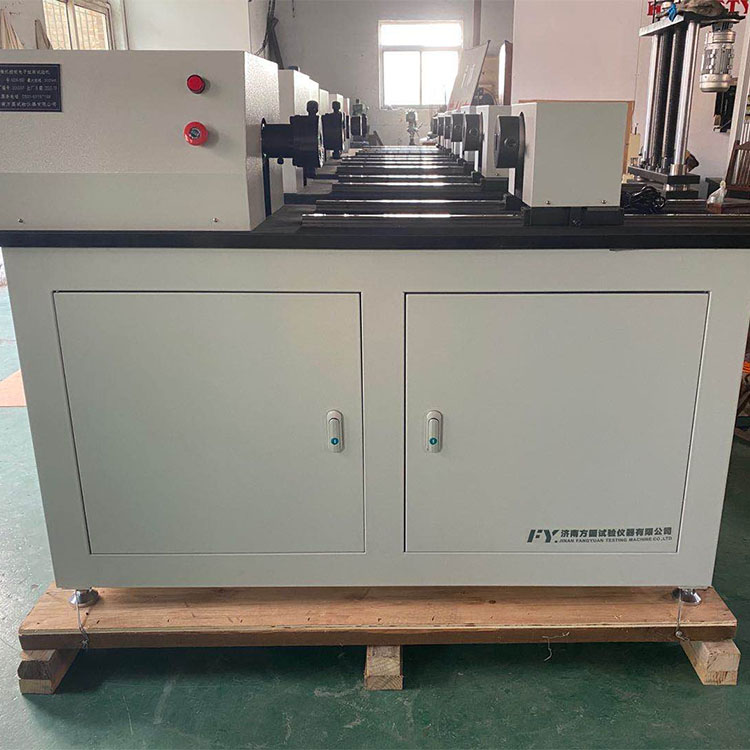

Deformed steel bar torsion testing machine
Automatic digital display metal material torque tester is mainly used for the torsion test of metal and non-metal
materials, as well as the torsion test for parts and components. t is an essential instrument to measure torsion
properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept,
universities and industrial enterprises etc.
|
100-5000Nm(Customizable) |
|
|
Relative error of test torque |
|
|
Torsional angle measurement range |
0-9999.9° |
|
Relative error of torsion angle |
≤±1% |
|
Minimum resolution 0.1° |
|
|
Maximum distance between two chucks |
0-500mm |
|
Torsional velocity range |
0-720°/min Stepless speed regulation |
|
Speed accuracy |
Better than ± 1% |
|
Test direction of rotation |
two-way |
|
Power supply |
220V±10%/50HZ |
