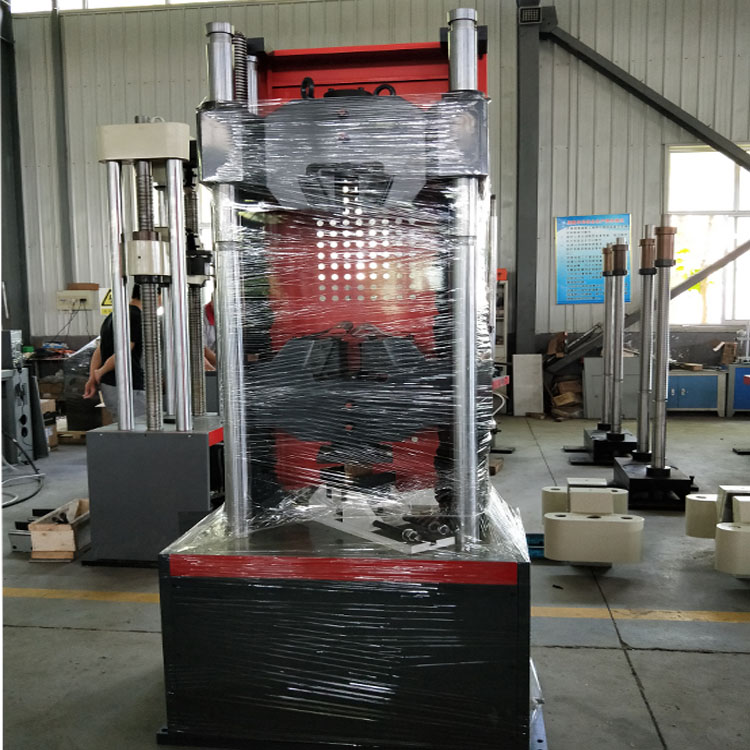

300KN hydraulic universal tensile strength testing machine for steel bars
Product description
The equipment is used for tensile, compression, bending and shear tests of various metal materials, and can also be
used as compression tests for non-metallic materials such as plastics, concrete and cement, adding simple
accessories to complete a variety of performance tests of tape chains, wire ropes, electric welds, tiles and
components.
Technical Parameters
|
Parameters |
300KN |
600KN |
1000KN |
|
Maximum test force |
300KN |
600KN |
1000KN |
|
Measuring range |
1 or 0.5 grade |
||
|
Test force resolution |
0.01KN |
||
|
Test force indication relative error |
≤±1% |
||
|
Deformation precision |
±0.5%F.S |
||
|
Piston stroke |
250mm |
||
|
Piston max movement speed |
80mm/min |
||
|
Stretch spac(mm) |
550 |
600 |
600 |
|
Compression spac(mm) |
380 |
380 |
600 |
|
Clamping Method |
Manual/automatic clamping |
||
|
Round Sample Clamping Diameter(mm) |
φ6-26 |
φ13-40 |
φ13-50 |
|
Flat Sample Clamping thickness |
0-15mm |
||
|
Max Clamping width of flat sample(mm) |
70 |
75 |
75 |
|
Pressure Plate Size |
φ160(or 204*204) |
||
|
Max distance between bending fulcrum(mm) |
450 |
450 |
450 |
|
Stretch space two legs distance(mm) |
450 |
450 |
550 |
|
Oil pump motor power |
1.1Kw |
1.1Kw |
1.1Kw |
|
Net weight |
1900kg |
2100kg |
2600kg |
