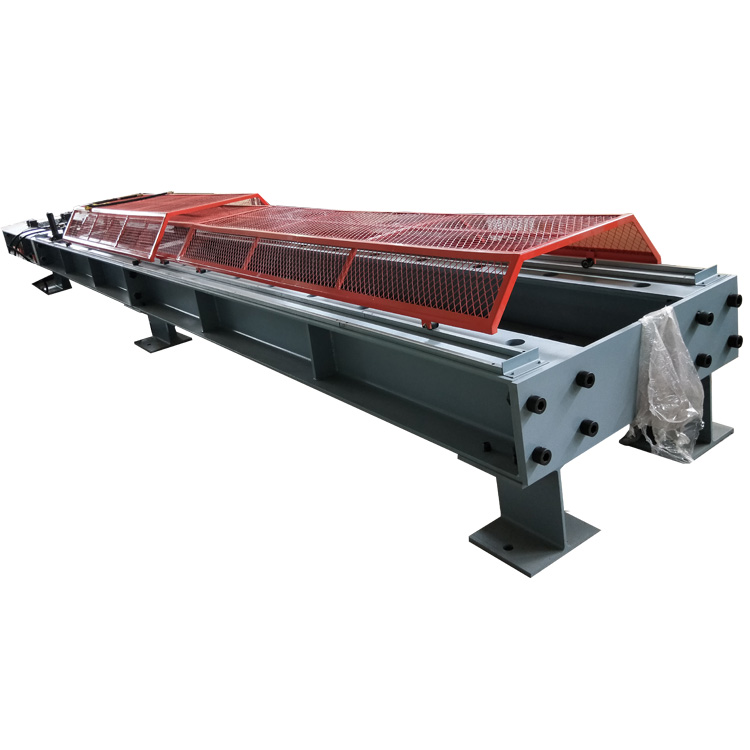

300KN horizontal tensile testing machine for steel strand
Product overview
The testing machine is mainly used for tensile strength testing of cables, cables, steel wire ropes, steel strands,
chains, conveyor belts, hoisting and other rope materials. The host uses hydraulic cylinder loading, load cell force
measurement, computer control and display printing Output advanced results such as experimental results.

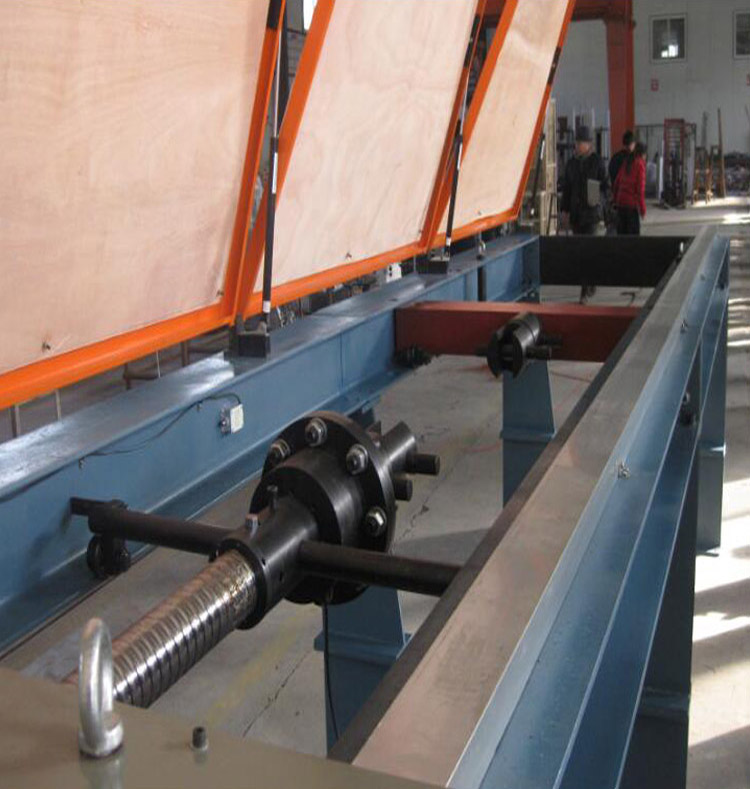

1. The machine adopts horizontal frame structure, space adjustment by the cylinder drag the beam, hydraulic
automatic bolt completed, the key components of the electro-hydraulic servo oil source - servo proportional valve for
the ATOS company's original import.
2. All digital controllers of the PC are loaded through the electro-hydraulic servo system, and the closed loop control
of the tester is accomplished using the Italian ATOS company DLHZO electro-hydraulic proportional servo valve,
which has high response speed and control accuracy.
3. It has strong anti-pollution ability and high reliability. The machine is equipped with a database technology-based
control and processing software package under the Windows 07/Xp environment. It has the functions of test data
collection, processing, storage and on-screen display. LAN sharing and distribution processing capabilities with test
data.
| TECHNICAL PARAMETER | |||||||
| Model | WLW-300 | WLW-500 | WLW-1000 | WLW-2000 | WLW-3000 | WLW-5000 | WLW-10000 |
| Maximum test force | 300kN | 500kN | 1000kN | 2000kN | 3000kN | 5000kN | 10000kN |
| Test force measurement range | 1%-100% | 1%-100% | 1%-100% | 1%-100% | 1%-100% | 1%-100% | 1%-100% |
| Test force measurement accuracy | ±1% | ||||||
| Piston stroke (mm) | 1000/1500 | 1000/1500 | 1000/1500 | 1000/1500 | 1500 | 2000 | 2000 |
| Test width (mm) | According to user needs | ||||||
| Test length(m) | 3×n | 3×n | 3×n | 3×n | 3×n | 3×n | 3×n |
| Adjust spacing(m) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1 |
| Displacement (deformation) measurement range (mm) | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-2000 |
| Displacement (deformation) measurement accuracy (mm) | ±0.1 | ||||||
| Test machine mainframe dimensions(m) | According to user needs | ||||||
| Power supply | 380V±10%,50Hz | ||||||
