cst-50 charpy impact testing sample notch project /Gaps Projector（This machine can observe V2/V3/U2 notched
specimens）
Application

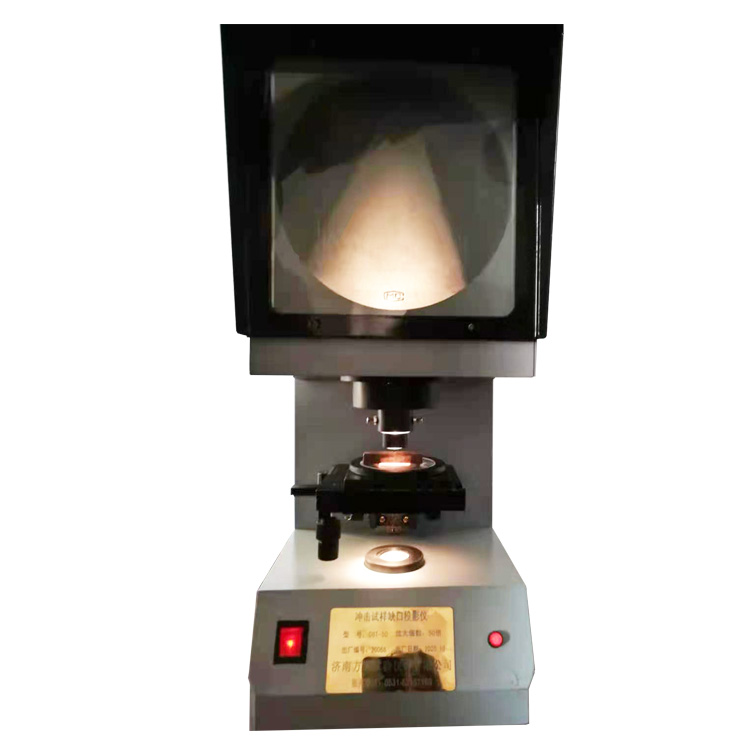

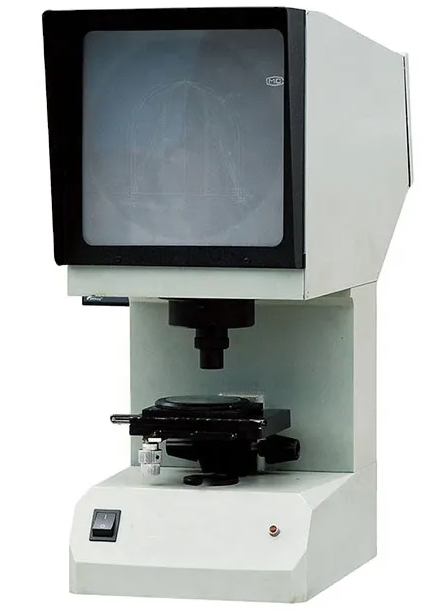

CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the
measured parts to the screen to check their profiles and shapes with high accuracy utilizing the
optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen
with the features of easy operation, simple structure, direct inspection and high effectiveness.
Main Technical Parameters
| MODEL |
CST-50 |
|
Diameter Of The Screen |
200mm |
|
Magnification Of The Instrument |
50X |
|
Objective Magnification |
2.5X |
|
Working Table Square Shape |
110125mm |
|
Diameter Of Round Worktable |
90mm |
|
Stroke Of Working Table |
Longitude: ±10mm,Latitude: ±10mm, Rise and fall: ±12mm |
