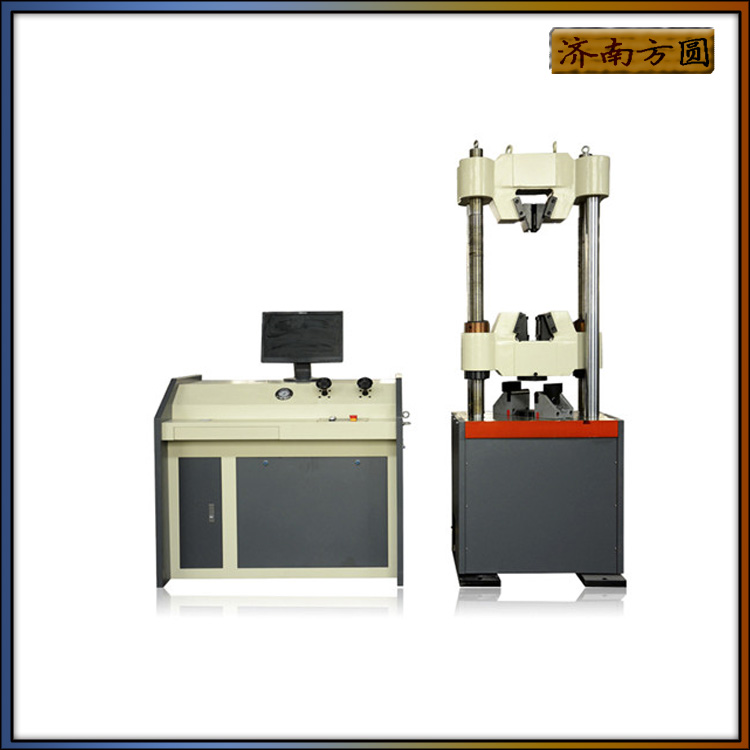

300KN hydraulic universal tensile strength testing machine
Product Introduction

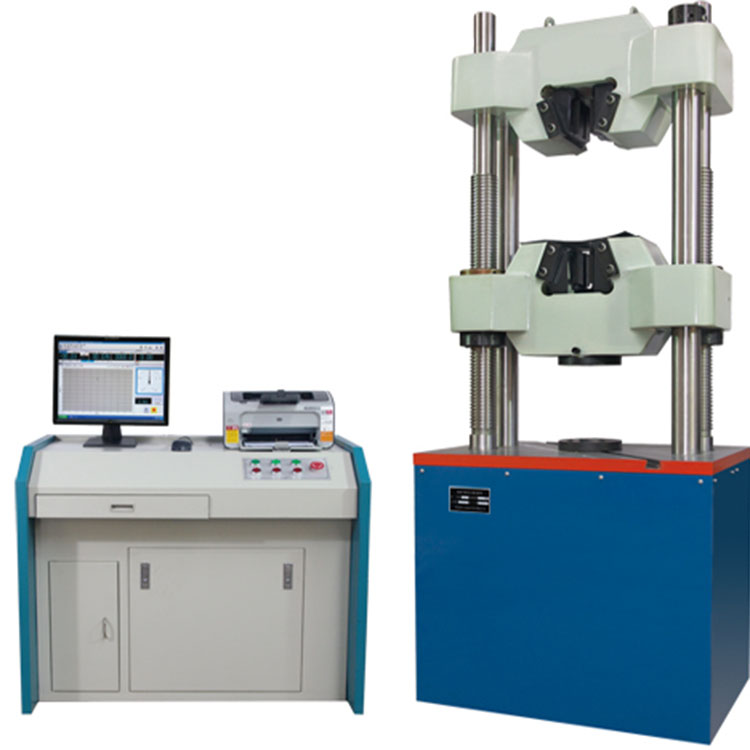

The WEW-300B microcomputer screen display universal testing machine is mainly used for testing the mechanical
properties of metal and non-metallic materials such as tension, compression, bending, and shear. This machine is
equipped with a computer, printer, electronic extensometer, photoelectric encoder, and universal testing software,
which can accurately measure the mechanical properties of metal materials such as tensile strength, yield
strength, specified non proportional extension strength, elongation, and elastic modulus. The test results can be
queried and printed (force displacement, force deformation, stress displacement, stress deformation, force time,
deformation time) with six curves and related test data. It has
software self checking function and can self diagnose faults. Please refer to the software description for details.
echnical parameters and specifications
1. Maximum test force: 300kN
2. Relative error of test force indication: ≤ ± 1%
3. Resolution: 0.01kN
4. Deformation accuracy: ± 0.5% FS
5. Stretch space: 550mm
6. Compressed space: 380mm
7. Clamping method: automatic clamping
8. Circular specimen clamping diameter: φ 6-26mm
9. Clamping thickness of flat specimen: 0-15mm
10. Maximum clamping width of flat specimen: 70mm
11. Shear specimen diameter: 10mm (optional)
12. Dimensions of upper and lower pressure plates: φ 160mm (optional 204) × 204mm）
13. Maximum distance between bending fulcrums: 450mm
14. Distance between two pillars in the stretching space: 450mm
15. Oil pump motor power: 1.1kW
16. Cross beam up and down movement motor power: 0.75kW
17. Overall dimensions of the host mm: 720 × five hundred and eighty × one thousand nine hundred and fifty
18. Net weight: 1900Kg
