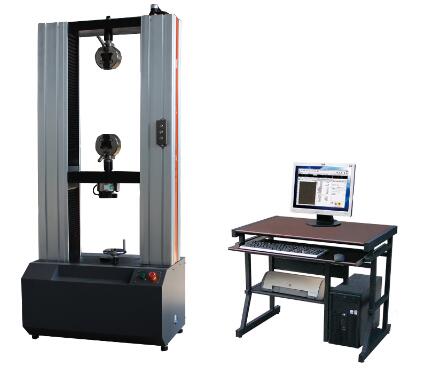

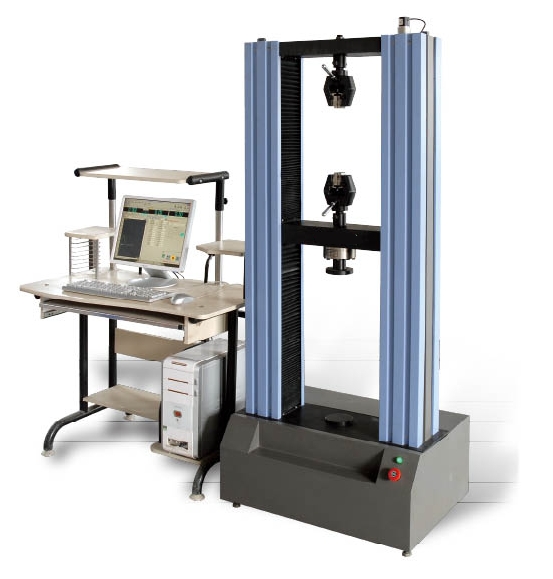

20KN glass fiber tensile strength testing machine 2 tons
Test fixture
1. The width of the fixture should be greater than the width of the specimen
2. The clamping surfaces of the fixture should be flat and parallel to each other, and the force should be evenly applied throughout
the clamping width
of the entire specimen, and the specimen should be prevented from slipping or any damage inside the fixture.
3. The clamping surface of the fixture should be as smooth as possible. If the clamping sample cannot meet the requirements, the
serrated and wavy
fixtures used should use rubber sheets as cushioning materials.
4. When clamping the mesh, it must be in a straight line to ensure uniform stress during stretching.
technical parameter
1.Serial number Technical index: WDW-20
2. Maximum test force: 20kN
3. Measurement range of test force: (0.4%~100%) of the maximum test force
4. Test force measurement accuracy: Within the measurement range of the maximum test force (0.2% to 100%), it is better than ±
1% of the indicated
value (level 1);
Within the measurement range of the maximum test force (0.4% to 100%), it is better than ± 0.5% of the indicated value (0.5 level)
5 Test resolution: ± 300000 yards
6. Maximum deformation value: 10mm
7. Deformation measurement range: 0.2% -100% of the full range of the extensometer
8. Deformation measurement accuracy: Within the range of 0.2% -100% of the full scale of the extensometer, it is better than ± 1%
of the indicated value (level 1);
9. Displacement measurement accuracy: better than ± 1% of the indicated value (level 1); Better than ± 0.5% of the indicated value
(0.5 level）
10. Displacement resolution: 0.001mm
11 Displacement speed (mm/min): 0 005 ~ 500
12 stretching stroke (mm): 700
13 Compression stroke (mm): 600
14 Test width (mm): 400
15 Force control rate adjustment range: 0.005-5% Fs/s
16 Force control rate control accuracy: within ± 1% of the set value
17. Deformation rate adjustment range: 0.005-5% Fs/s
18. Deformation rate control accuracy: within ± 1% of the set value when the rate is less than 0.05% Fs;
Within ± 0.5% of the set value when the rate is greater than 0.05% Fs
19. Displacement rate control accuracy: When the rate is less than 0.01mm/min, it is within ± 1% of the set value;
When the rate is ≥ 0.01mm/min, it is within ± 0.5% of the set value. 0.005—250mm/min
20 Constant force, displacement, and deformation control range: 0.5%~100% Fs
21. Constant force, displacement, and deformation control accuracy: When the set value is ≥ 10% Fs, it is within ± 0.1% of the set
value;
When the rate is less than 10% Fs, it is within ± 1% of the set value
22 Working environment: room temperature 10~35 ℃, humidity 20%~80%
23 Overall dimensions of the host (width × deep × Height (mm): 750 * 500 * 1850
24 Host weight (kg): 400
