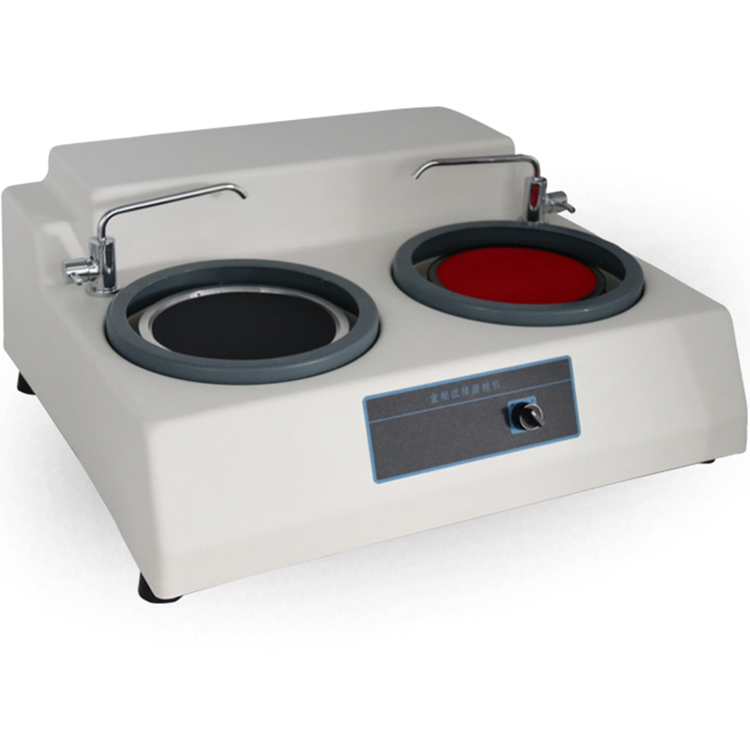

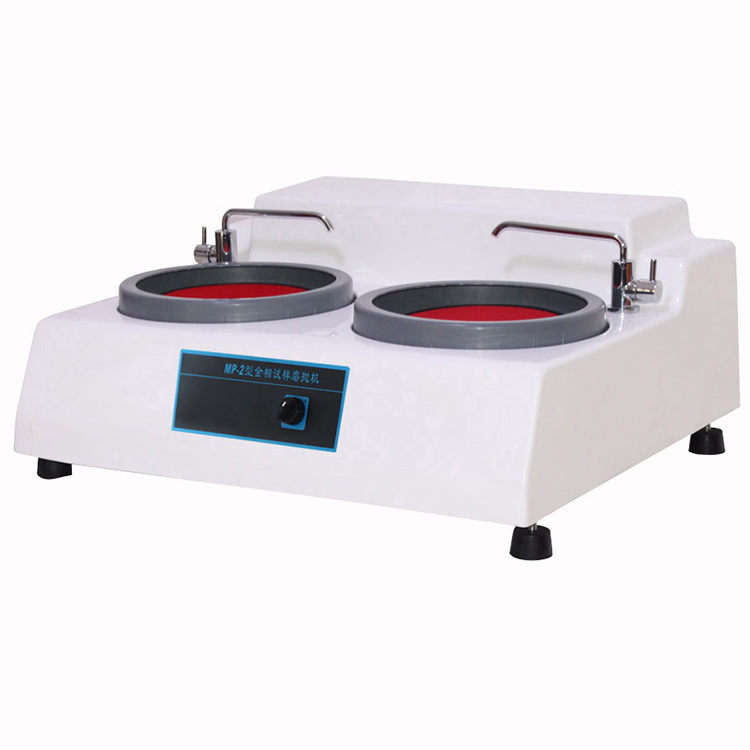

The following is the product introduction of MP-2 metallographic sample grinding and polishing machine
Summary
The MP-2 metallographic sample grinding and polishing machine is an economical model that combines sample pre grinding
and polishing operations.
The rotary table obtains different rotational speeds through the speed ratio of the pulley, thus achieving the grinding and polishing
function. It is an ideal equipment for sample production in small and medium-sized enterprises.
Instructions
The left disc of the machine is a pre grinding disc, and the right disc is a polishing disc. During pre grinding, cooling water is
continuously injected into the rotating grinding disc through a rotating water nozzle. Under the action of atmospheric pressure, the
sandpaper can tightly adhere to the grinding disc, thus avoiding the need to bond or clamp the sandpaper. When polishing, the
polished fabric can be laid flat on the polishing disc, and then f
astened with a buckle before polishing. Both the fabric and the polishing disc can be replaced in a timely and convenient manner.
Technical parameters
◇ Grinding disc diameter: 230mm; Trash diameter: 200mm
◇ Grinding/throwing speed: 450r/min, 600r/min (or customized according to user requirements)
◇ Motor: 370W 220V 50Hz
◇ External dimensions: 690 × seven hundred and fifteen × 310mm
◇ Net weight: 45Kg
◇ Main accessories: 1 1.5 meter long drainage pipe, 1 2 meter long pressure resistant water inlet pipe, and 2 pieces of polished
fabric
