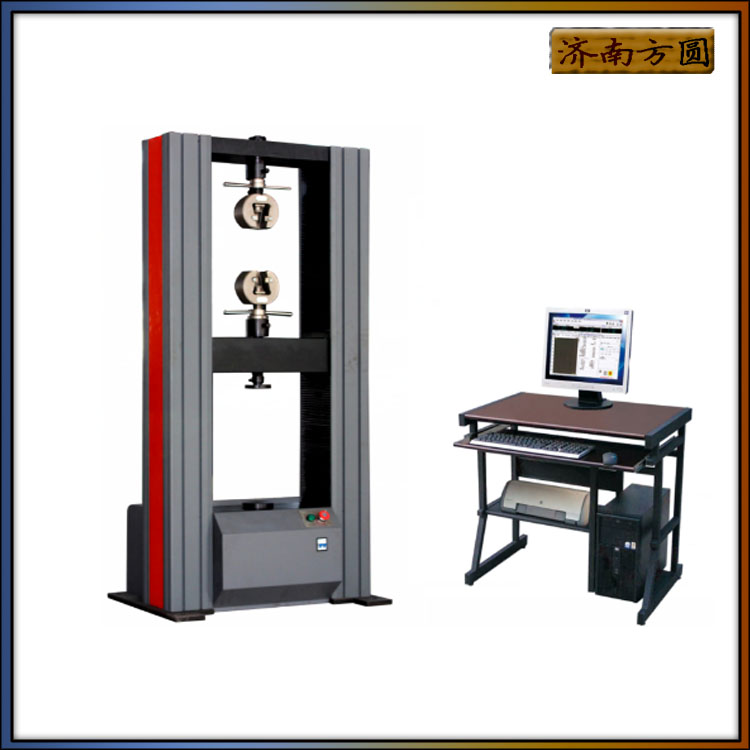

100KN Scaffold Fastener Universal Testing Machine Product Introduction
Contact us
Jinan Fangyuan Testing Machine CO.,Ltd
TEL:13864006141
Email:jnfysyj01@163.com
Wechat:13864006141
Address:No.276,Nanxinzhuang West Road,Shizhong Dist.,Jinan, Shandong, China.
Website:www.shijinyiqi.com
Technical parameter
1. Equipment model WDW-100E
2. Testing machine accuracy level 0.5
3. Maximum test force (dual sensors) 100KN 5KN
4. Test force measurement range 0.4KN-100KN 0.02KN-5KN
5. The relative error of the test force indication is better than ± 0.5% of the indication value
6. Test force resolution 1/± 500000 of the maximum test force
7. The minimum reading of the test force is 0.01KN of 100KN 0.001N of 5KN
8. Deformation measurement range 0.2% -100% FS
9. The relative error of deformation indication is better than ± 0.5% of the indication value
10. Deformation resolution: 1/± 500000 of the maximum deformation amount
11. The relative error of displacement indication is better than ± 0.5% of the indication value
12. Minimum displacement reading 0.001 mm
13. Force control rate adjustment range 0.002-5% FS/S
14. Within ± 0.5% of the relative error set value of force control rate
15. Deformation rate adjustment range 0.002-5% FS/S
16. When the relative error rate of deformation control rate is<0.05% FS, it is within ± 2% of the
set value;
When the rate is ≥ 0.05% FS, it is within ± 0.5% of the set value
17. The speed adjustment range of the crossbeam is 0.001-500mm/min; (The speed within the interval can
be set arbitrarily)
18. When the relative error rate of beam speed is<0.001mm/min, within ± 1.0% of the set value; When
the speed is ≥ 0.001mm/min, within ± 0.2% of the set value
19. Constant test force control range 0.2% -100% FS
20. Constant deformation control range 0.2% -100% FS
21. Constant displacement control range 0.2% -100% FS
When the set value of constant test force control accuracy is less than 10% FS, it is within ± 0.5%
of the set value;
When the set value is ≥ 10% FS, it is within ± 0.1% of the set value
23. Constant deformation control accuracy
24. Constant displacement control accuracy
25. Effective stretching space>750 mm (supports customization)
26. Effective compressed space>750 mm (supports customization)
27. Beam movement space>1000mm (supports customization)
28. Effective test width 450 mm (supports customization)
29. Measurement device for anti slip coefficient of right angle fasteners 1 Δ 1. Use high-precision
photoelectric encoder
2、 Δ 2. Using an electronic collector
30. Torsional stiffness of right angle fasteners 1. Use a 5KN sensor for force measurement
2. Displacement measurement using electronic collectors
31. Measurement device for anti slip coefficient of rotating fasteners 1 Δ 1. Use high-precision
photoelectric encoder
2、 Δ 2. Using an electronic collector
32. Protection device (automatic shutdown) overload, overvoltage, overcurrent, limit protection
33. The overall size of the host is approximately 860 * 680 * 2320mm
34. Power supply 220V ± 10% 50HZ, 2kW
35. The weight of the host is approximately 960KG
36. Suitable for GB/T15831-2006 Steel Pipe Scaffold Fasteners
37. Test items that can be completed: Steel pipe scaffold fasteners
Tensile strength test for docking fasteners
Right angle fastener anti slip test
Right angle fastener failure resistance test
Torsional stiffness test for right angle fasteners
Anti slip test of rotating fasteners
Rotational fastener failure resistance test
base compression test
38. Optional Test Items
1. Safety net mechanical aids
2. Seat belt mechanical aids
3. Steel pipe fasteners, steel pipe tensile aids
4. Other stretching, compression, bending, and shearing aids
39. Selection of Test Standards
1. Built in hundreds of GB, industry standards, and international standards
2. New test methods can be added according to test requirements
40. Test conditions
1. Environmental temperature: 10 ° C to 35 ° C, relative humidity ≤ 80%;
2. There is no corrosive medium, strong magnetic field, or vibration around;
3. The fluctuation of power supply voltage should not exceed 10% of the rated voltage, and there
should be reliable grounding.
