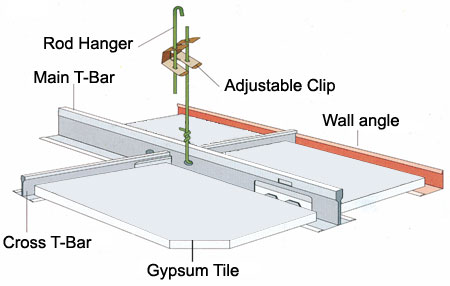

Suspended ceiling T grid
Ceiling System is applied to ceilings in public buildings as official , institutional and industrial buildings, wher people attach great significance to acoustical properties of the ceilings. It's made of galvanized light steel and faced with baking coated steel band.
It features:
* Easy installation * Acoustic Performance * Elegant looking

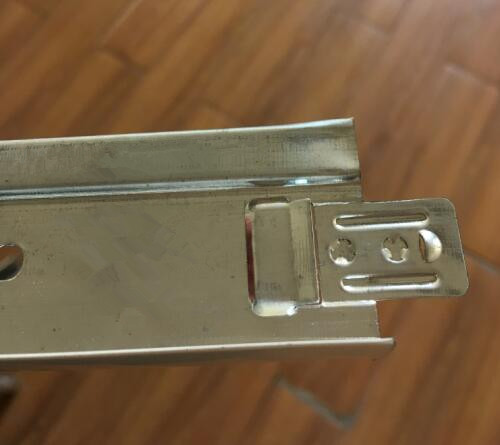

Main Bar
Thickness:0.23mm,0.25mm,0.28mm,0.3mm, 0.35 mm
size:
a) 24 x 38 x 3,600mm
b) 24 x 32 x 3,600mm

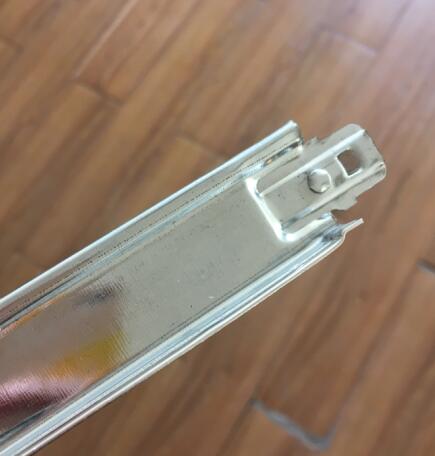

Cross Tee ( Middle)
Thickness:0.23mm,0.25mm,0.28mm,0.3mm, 0.35 mm
size:
a) 24 x 32 x 1,200mm
b) 24 x 26 x 1,200mm
Cross Tee (Small)
Thickness:0.23mm,0.25mm,0.28mm,0.3mm,0.35 mm
size:
a) 24 x 32 x 600mm
b) 24 x 26 x 600mm

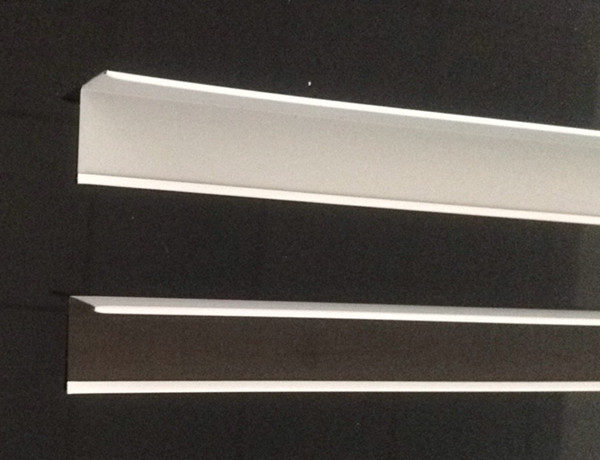

Wall Angle
Thickness:0.23mm,0.25mm,0.28mm,0.3mm,0.4mm
size:
22 x 22 x 3,000mm
24 x 24 x 3,000mm
22 x 19 x 3,000mm
