and wall angle to make the grid system to support the lay-in ceiling tiles.
It is easy for installation and maintenance. It is widely be used for fixing Mineral
Fiber Ceiling Board and PVC Gypsum Ceiling Board,etc
Ceiling T grids can be used for all types of buildings, such as office buildings,
hotels,department stores, hospitals, residences, entertainment venues, stores and so on.
Advantages:
1)Suitable for most appropriate board materials, highly fire resistant.
2)Quick and easy installation; saves costs and ensures on-time project completion.
3)Light weight, reduces load in high-rise buildings.
4)Easy to install and remove; allows spaces to be conveniently rearranged.
Features:
1 Material:hot dipped galvanized steel coil,Al-alloy and color steel.
2 Shape:Plane,groove,solid groove
3 Color:white,white line,black line
4 specification
32H

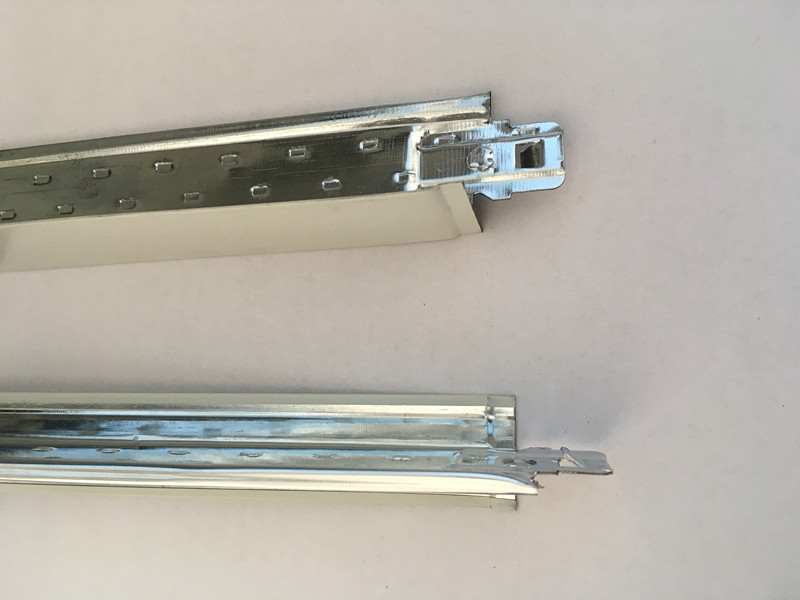

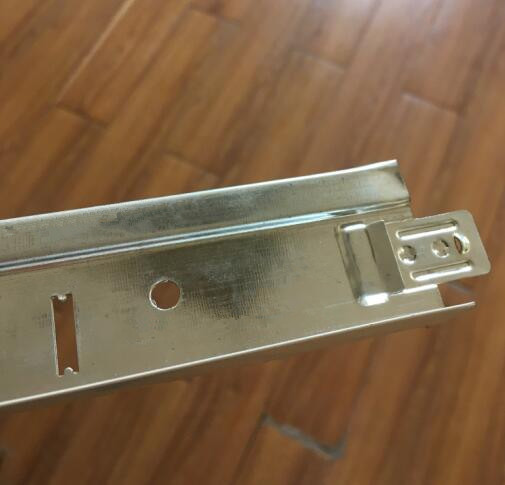

Main tee: 3600/3660*24*32*0.3mm
Cross tee: 1200/1220*24*26*0.3mm
Cross tee: 600*24*26*0.3mm
Wall angle: 3000*22*22*0.4mm/3000*24*24*0.4mm
38H
Main tee: 3600/3660*24*38*0.3mm
Cross tee: 1200/1220*24*26*0.3mm
Cross tee: 600*24*26*0.3mm
Wall angle: 3000*22*22*0.4mm/3000*24*24*0.4mm
Thickness can be 0.2mm-0.35mm.

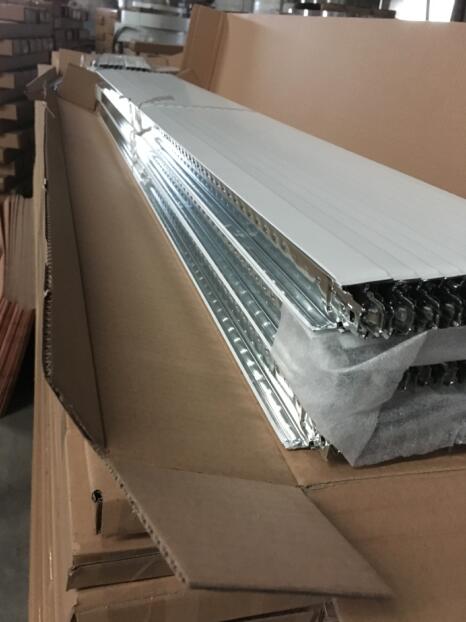

5 package:
25pcs/27pcs/50pcs/75pcs/Carton (Shipping Mark Customed)
