China Manufacturer Factory Price Small Spring Cone Crusher
Product Description
Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. It has features of reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing. The hot sale models are 600, 900, 1200, 1750, 2200 etc.

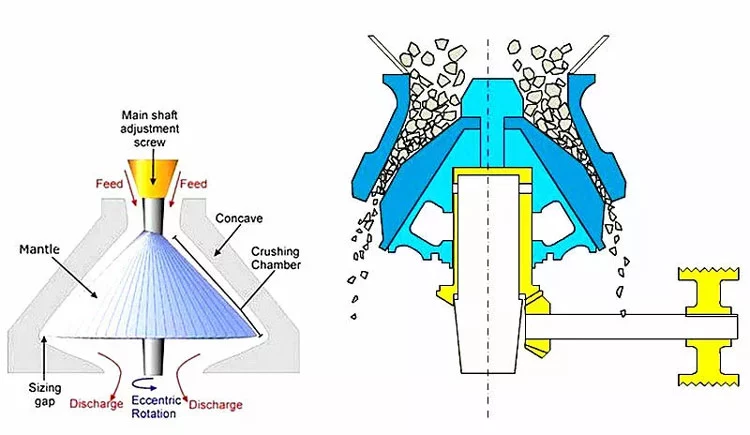

Working Principle
When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and some times far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Performance Characteristics
1.Large crushing force,good particle shape,high efficiency.
2.The quick -wearing spare parts are made by highly wear-resistant materials,less consumption ,lower running cost.
3.The diversification of cavity type can meet the needs of different users.
4.Hydraulic protection and hydraulic clearance,high degree of automation ,easy operation,maintenance more convenient.
5.The independent multi-point lubrication system control can realize automatic machine security..
6.The use of large-diameter shaft and heavy-duty main frame to ensure that the equipment rugged and reliable operation.

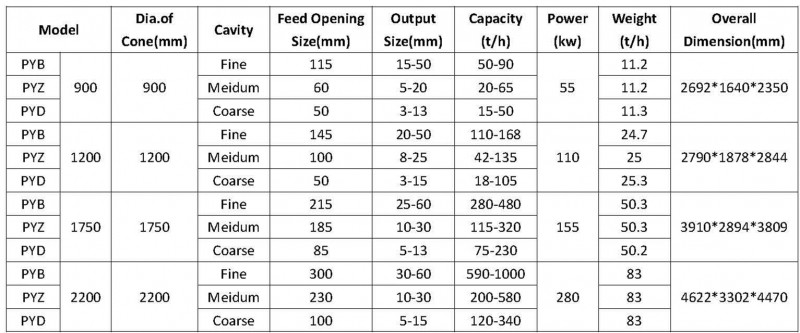

Technical Details
