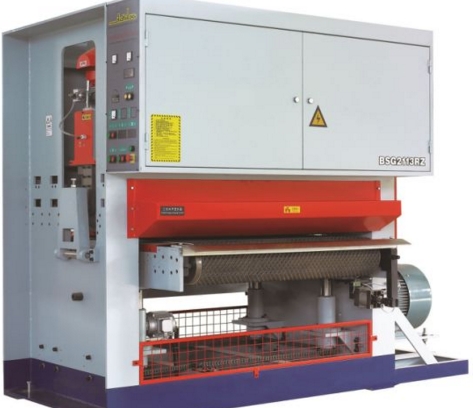

Single Head Plwood Calibrating Sander machine
1. This calibrating sander machine is mainly used for thickness calibrating plywood,particleboard, MDF etc.
2. Overall welding frame structure, long service life, high rigidity.
3. Big sanding roller diameter, accurate dynamic balancing,high precision. ensures good sanding performance.
4. Multiple safety design, safe and reliable.
5. International brand advanced electrical components, less trouble, more stable.
Technial Parameters
| Sanding Width | 40~1300mm |
| Sanding Thickness | 2.5~110mm |
| Sanding Length | >780mm |
| Abrasive belt speed | 20m/s |
| Size of Abrasive belt | 13302620mm |
| Motor for sanding head | 55kw |
| Feeding motor | 7.5kw |
| Lifting motor | 0.75kw |
| Brushing motor | 0.75kw |
| Feeding speed | 20~40m/min |
| Operating pressure | 0.6~0.8Mpa |
| Capacity of suction extraction | 7900cbm/h |
| Machine Size | 21002900x2440mm |
