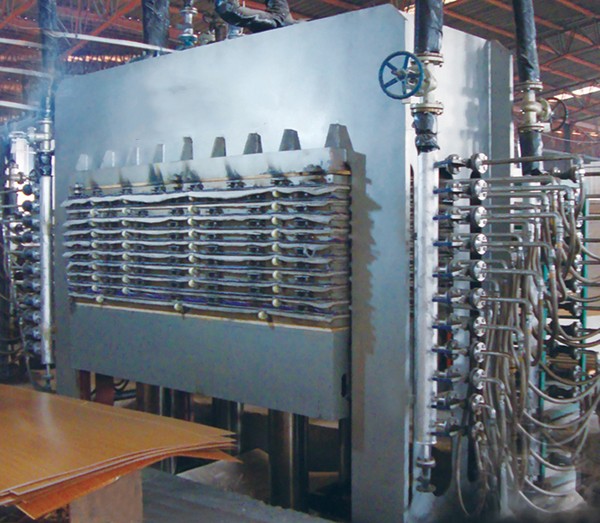

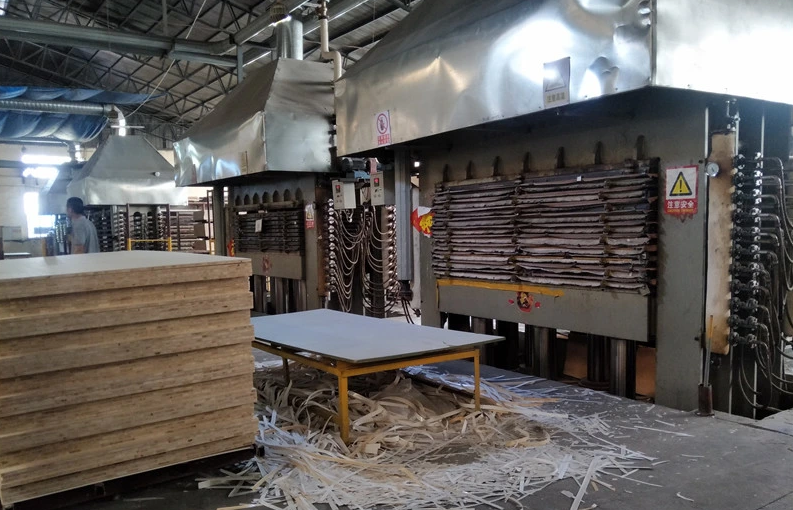

Plywood Hot Press machine is one of the main equipments in producing plywood,blockboard, film faced plywood, fancy plywood.
1.The main frame is welded by No.1 national standard steel plate,strong body, high rigidity.
2. Adopt micro computer control system and imported hydraulic units, easy to operate,long working life.
3. Adopt advanced hydraulic pump station and plunger cylinders, featured product--aviation technology low noisy hydarulic pump.

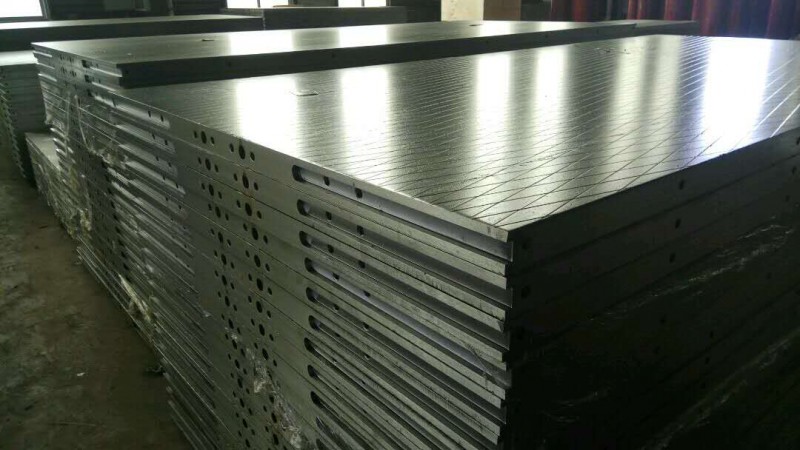

4. All the hot platens are made of the best quality steel plate, after solid drilled and fine polished, good thermal conductivity.
5. It has manual and automatic transfer function to meet user's demand.
Technical Specifications
1. Various pressure: 400T/500T/600T/800T/1000Ton and more.
2. Plywood sizes: 12202440mm, 915x1830mm etc.
| Model | BY214X8/6-10IIZ |
| Nominal pressure | 6000KN |
| Feeding direction | Horizontal |
| Layers counting | 15layers |
| Daylight | 70mm |
| size of hot platen | 27001370x52mm |
| main cylinders | 2pcs x φ400mm x 1050mm (WUXI cylinder) |
| Heating medium | Thermal oil or hot steam |
| Low pressure pum | 2x355L/min |
| Allowed pressure | <5Mpa |
| Power | 2 x 11kw |
| Control Method | Automatic Pumping station |
| frame | Composite frame for export container |
| Thickness of steel plate | 50mm |
| Machine weight | 45Tons |
