1.machine work principle
40-24B block making machine is using the method of the down mould directionally and vertically vibrating together with upper mould compressing.
Two 5.5 kw electric motor fixed at the machine bottom for the down mould vibration, One 3 KW motor fixed on top for the upper mould vibration.
Materials-distributing is done once for all at a time by electric control, and the mould movement is also driven by power.
2. Main parameters
|
Forming blocks |
400*200*200 4 blocks/mould 240*115*52 24 blocks/mould |
|
Forming time |
24s |
|
capacity |
3000-4000 blocks /shift (concrete) |
|
Vibration frequency |
4200r.pm |
|
Vibration force |
35.5kn |
|
Forming machine power |
22KW |
|
Dimension |
2060*1730*2580 |
|
Pallet size |
850*550*30mm |
3.Whole brick making line configuration
(1) Motors/ PLC systems
semi-automatic block making machine is usingGermany Siemens motors and Japan Mitsubishi PLC, the over travel-limit switch is Omron brand, reliable quality, low fault rate and durable.
(2) Mixing system
|
Model No. |
JD350 |
|
Feeding Capacity |
560 |
|
Discharging volume |
350 |
|
productivity |
≥4 |
|
Speed |
4 |
|
Total power |
10.5 kw |
|
Overall dimension |
1270*1250*1250mm |
|
Total weight |
1420kG |
(3) Conveying belt, 6 meters

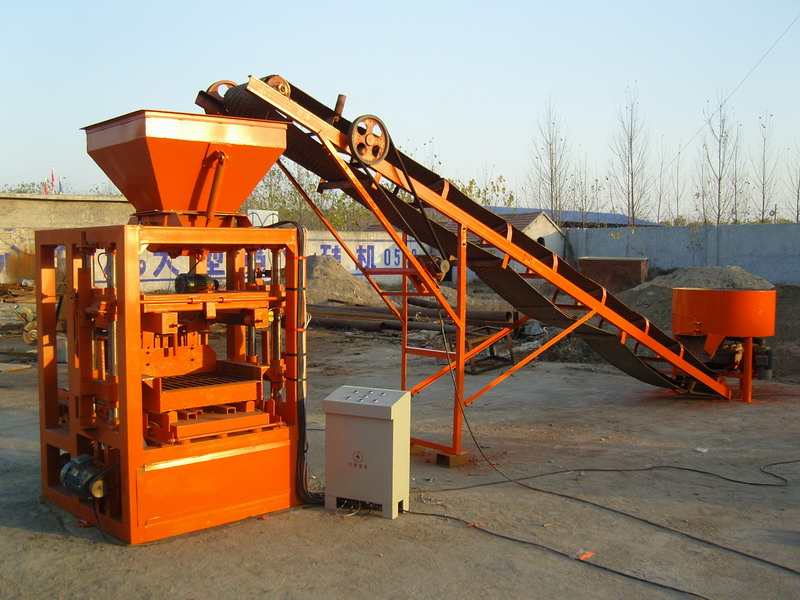

(4) Block moulding system--host machine
4. productivity
|
Type |
Size(mm) |
Mold time |
Pcs/mold |
Pcs/h |
|
Hollow block |
400*100*200 |
24s |
7 |
1050 |
|
400*200*200 |
24s |
4 |
600 |
|
|
400*250*250 |
24s |
3 |
450 |
|
|
Solid brick |
240*115*53 |
24s |
24 |
3600 |
