Technical characteristics
1.Can produce differernt kinds of hollow bricks, solid bricks
2. have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3. Use the heat treatment technial to deal with the mould,so the useful life of the mould is more longer.
4. Use lower power to realize superior vibratory effects,making various materials to flow-fill and close packing.Simultaneously pressure on the up-mode vibration. The density of produced block is uniform density, high strength, performance and product quality can be comparable to large-scale equipment
main technical parameter.
| Dimension of host brick machine | 2060×1730×1850 | Host machine power | 11.95kw |
| Moulding period | 26s | Vibration force | 35.5kn |
| The size of the pallet | 850×550×30 | Power of host machine | 18.8kw |
| Weight of the machine | 3T | Mixer model | JQ350 |
production capacity
| No | Size(LxWxH) | Pcs/Mould | Pcs/Hour | Pcs/Shift | |||
| 1 | 400200200mm | 4 | 310-400 | 2480-3200 | |||
| 2 | 400100200mm | 7 | 550-700 | 4400-5600 | |||
| 3 | 400150200mm | 5 | 400-500 | 3200-4000 | |||
| 4 | 400250200mm | 3 | 230-280 | 1840-2240 | |||

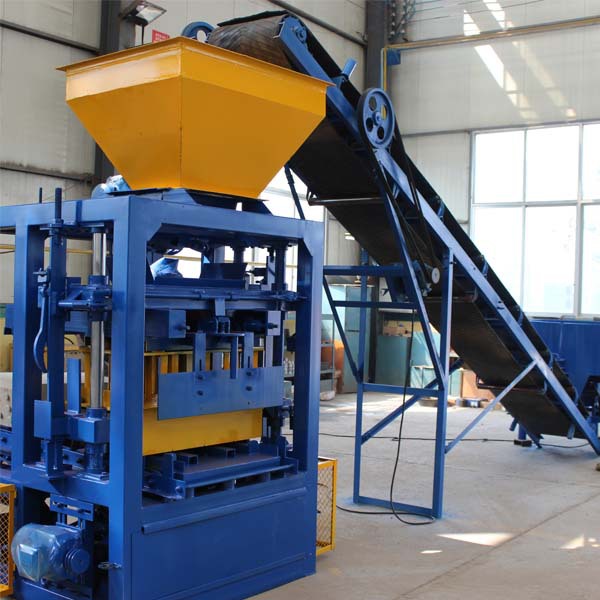

4-26 block making machine is using the method of the down mould directionally and vertically vibrating together with upper mould compressing.
Two 5.5 kw electric motor fixed at the machine bottom for the down mould vibration, One 3 KW motor fixed on top for the upper mould vibration.
Materials-distributing is done once for all at a time by electric control, and the mould movement is also driven by power.
Production line List
| NO. | Device Name | power | Unit | Quantity |
| 1 |
Block machine (Inc:control box) |
12.7 | set | 1 |
| 2 | Concrete mixer | 7.5 | set | 1 |
| 3 | Belt conveyer machine | 1.1 | set | 1 |
| 4 | one standard mould |
|
set | 1 |
| 5 | block trolley |
|
set | 2 |
| 6 | spare parts and tools |
|
set |
|
