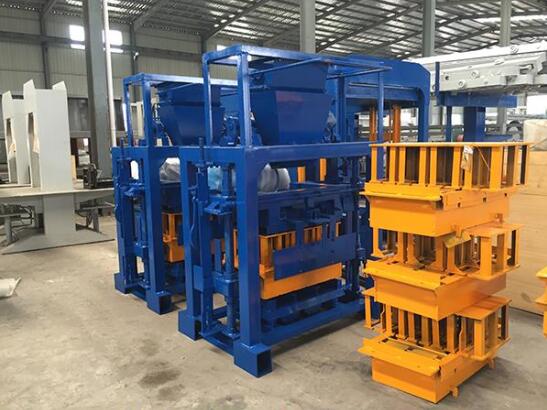

QT40-1 manual brick making machine introduction
QT40-1 type block machine is created based on original block molding machine with technological innovation and development, Its design is reasonable,
excellent performance. This machine equipped with super vibration motor, The production of blocks are of good quality,large density and high strength.
adopting manual push-pull mold, artificially packing material,simple operation, save energy, finished brick faster, low labor intensity.
| 1. main technical parameters | |||||||
| (1) | Dimension of host machine | 1800*1500*2500mm | / | (6) | labour | 4 workers | |
| (2) | Weight of the host machine | 1.5T | / | (7) | Voltage | customized | |
| (3) | Moulding period | 35-45 | / | (8) | Toal required machine power | 23.15KW | |
| (4) | pallet size | 850*450*20mm | / | (9) | Diesel Genset capacity | 30KVA | |
| (5) | Vibration force | 50KN | / | (10) | workshop area | 200 m2 | |
| 2. Theoretical production capacity | ||||||
| Size(LxWxH) (mm) | Forming Period (S) | Pcs/ Mould | Pcs/Hour | Pcs/ 8 hours | ||
| (1) | hollow block 400*250*200 | 35-45 | 3 | 240-308 | 1920-2468 | |
| (2) | hollow block 400*200*200 | 35-45 | 4 | 320-410 | 2560-3290 | |
| (3) | hollow block 400*150*200 | 35-45 | 5 | 400-514 | 3200-4114 | |
| (4) | hollow block 400*100*200 | 35-45 | 7 | 560-720 | 4480-5760 | |
| (5) | Solid Brick 240*50*115 | 35-45 | 18 | 1440-1848 | 11520-14784 | |
| (6) | Porous Brick 240*115*90 | 35-45 | 9 | 720-924 | 5760-7392 | |
| (7) | Curbstone 500*200*300 | 35-45 | 1 | 80-102 | 640-816 | |
| (8) | "I" shape paver brick without color 200*163*60 | 35-45 | 6 | 480-616 | 3840-4928 | |
| (9) | "S" Shape Paver Brick without color 225*112.5*60 | 35-45 | 9 | 720-924 | 5760-7392 | |
| (10) | Holland Brick without color 200*100*60 | 35-45 | 9 | 720-924 | 5760-7392 | |
| (11) | Square Paver wihtout color 250*250*60 | 35-45 | 3 | 240-308 | 1920-2468 | |
