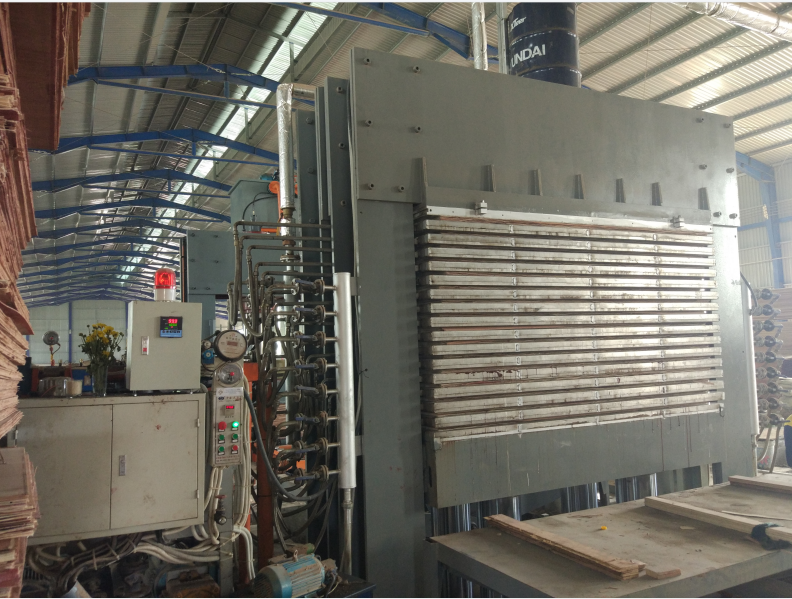

Click the picture to view the original image
|
Machine name |
Plywood LVL Hot Press Machine |
|
Normal gross pressure |
8000KN/800TONS |
|
Panel in-feeding direction |
Horizontal |
|
Layers counting |
15Layers |
|
Distance between layers/daylights |
70mm |
|
Quantity of layers/daylights |
16Pcs |
|
Dimension of layers/daylights |
13702700x52mm |
|
Plunger oil cylinders diameter |
320mm |
|
Plunger oil cylinders quantity |
4Pcs |
|
Plunger oil cylinders stroke |
1050mm |
|
Allowed pressure |
≤25Ma |
|
Empty closing time |
29seconds |
|
Low pressure pump flowing |
355L/Min x 2 |
|
Allowed pressure |
≤5Ma |
|
Motor power |
11Kw x 2 sets |
|
High pressure pump flowing |
35L/Min |
|
Motor power |
7.5Kw |
|
Specific pressure |
24.2kgf/cm2 |
|
Final panel size |
1280 x 2560mm |
|
Machine overall dimension |
3590 x 1370 x 4570mm |
|
Control way |
Automatic pumping station |
|
Machine frame |
Composited |
|
Thickness of upside & downside crossbeam |
1000mm, 900mm |
|
Thickness of crossbeam |
500mm |
|
Thickness of Q235B Steel plate |
40mm |
