China pneumatic veneer patching machine
Click the picture to view the original image
Product: China pneumatic veneer patching machine
Valid Date: Long term effective
Last update: 2023-04-06 10:05
  Inquiry price
Detailed information

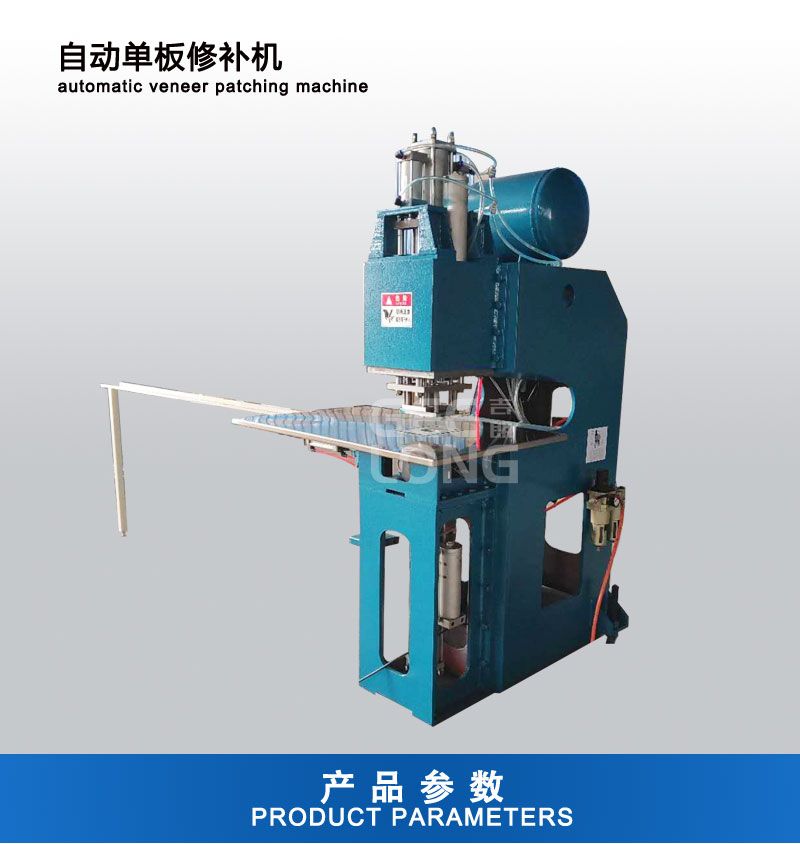

Description of china pneumatic veneer patching machine:
automatic veneer patching machine doesn't need any glue and tape.the patching shape can be customized.GEELONG

plywood machinery is professional automatic veneer patching machine supplier.
there are two types automatic veneer patching machine
one mainly pressure is from hydaulic cylinder
one mainly pressure is from pneumatic
china pneumatic veneer patching machine features:
1,feeding patch and making hole is automatic process
2,patch height position in veneer with 1/100mm accuracy
3,no more polyurethane patching anvil and no need any tape

china pneumatic veneer patching machine specification:

Patching veneer thickness 0.8-3mm
Patching veneer size 60*110mm
Working speed about 3-5s/time
Power 0.25kw
Rated oil pressure 16MPa
mainly pressure pneumatic
Overall dimension 1810L*1300W*1750H(mm)
Weight about 1300kgs
