plywood overturn machine
Click the picture to view the original image
Product: plywood overturn machine
Valid Date: Long term effective
Last update: 2023-04-06 10:05
  Inquiry price
Detailed information


Machine model type

GTM4*8A

Angle of rotation

0-180°

Max. Opening

1400-1700mm

Cylinder stroke

500mm

Total power

4.5kw

Overall size

2200*1800*2000mm

Total weight

1500kgs

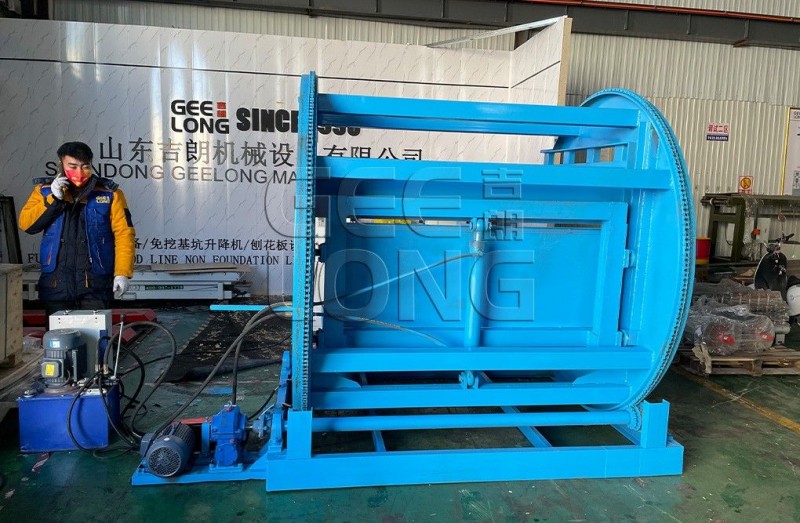

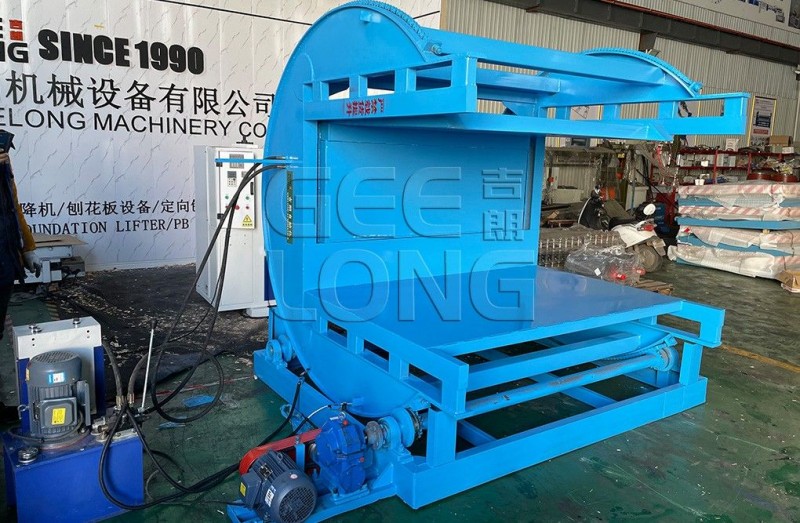

This board overturn machine, consist of two system, one system is hydraulic system, and another one is chain overturning system, hydraulic station’s function is used to fasten the plywood not drop during the 180°overturning.

Geelong machine ensure, all motors, reducer machine, all electrical parts are good and famous brand, like shandong huali , schneider, GUOMAO...etc.
