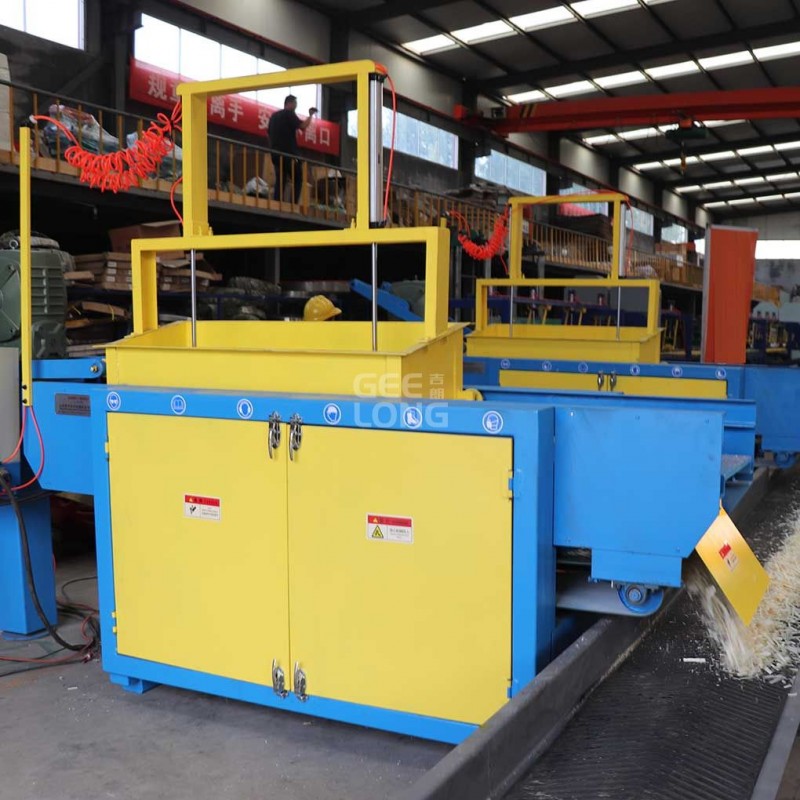

Geelong brand wood shavin machine the specifications as below:
Model | GLWSM500-2 | GLWSM500-4 | GLWSM500-6 |
Max. processing wood length | 800mm | 1400mm | 1400mm |
max. processing wood width | 500mm | 500mm | 500mm |
shaft quantity | 2 | 4 | 6 |
blade quantity | 8pcs | 16pcs | 24pcs |
speed | 3500 | 3500 | 3500 |
bucket length | 800mm | 1400mm | 1400mm |
motor power | 10.5kw | 23.25kw | 30.75kw |
shavin depth | 0.2-1mm | 0.2-1mm | 0.2-1mm |
capacity(fresh wood) | 500kg/hour | 1000kgs/hour | 1500kgs/hour |
weight | 950kgs | 1800kgs | 2200kgs |
