Product parameters
| Machine Model | BY114X19/12-6IId |
| Normal gross pressure | 12000KN/1200TON |
| Panel in-feeding direction | Longitudinal |
| Layers counting | 6Layers |
| Distance between hot platens | 150mm |
| Hot platens counting | 7Pcs |
| Hot platens dimension | 6300 x 1450 x 60mm |
| Plunger oil cylinders quantity | 10pcs |
| Plunger oil cylinders diameter | Φ250mm |
| Plunger oil cylinders stroke | 1800mm |
| Allowed pressure | ≤25Mpa |

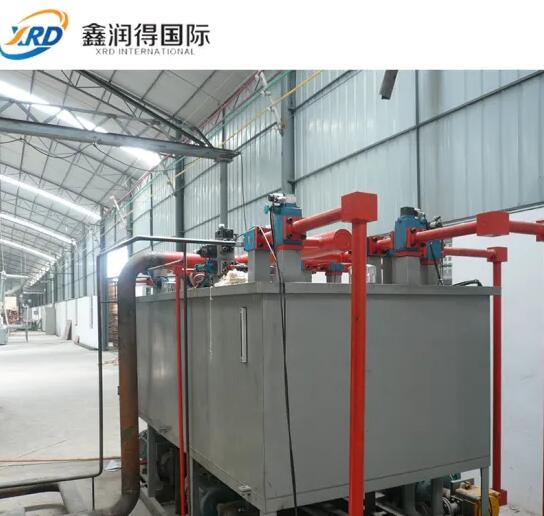

| Hydraulic pump station | 2sets |
| Unit pressure | 14kgf/cm2 |
| LVL panel dimension | 6200 x 1370mm |
| Machine weight | 75,000Kgs |
| Machine overall dimension | 6300 x 2350 x 4185mm |
| Control way | Automatic PLC |
Features
1. The main frame is welded by one-time blanking of national standard steel plate. The structure is simple, the design is reasonable, the rigidity is high, the strength is high, and the bearing pressure is large.
2. Microcomputer control, high degree of automation, strong reliability, easy adjustment and long service life.
3. The hydraulic control system uses high-quality hydraulic parts, which can pressurize quickly and accurately, and have high working efficiency.
4. Complete model, can be designed according to user needs.
