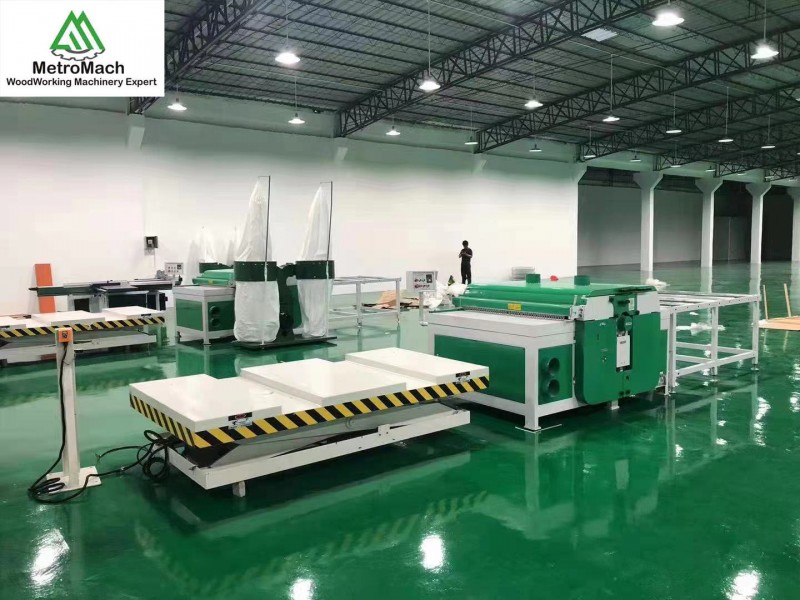

Automatic Wood Board Multi Rip Saw Machine
Using Description
(A)Installation:
The multi rip saw machine on the level of the ground, with cement will be four feet screw irrigation, and then adjust the level, and the screw can be pressed, can also be placed directly on the level of the ground, proofreading level can, and then select enough power And machine power supply connection.
(B)To adjust:
1.Adjustment of saw shaft
According to the wood and quality requirements to be processed to choose a good saw blade, in the case of high precision, should choose the number of teeth more slices better, and according to the size of the blade diameter and sawing depth, the blade spindle Up and down to adjust.
Adjustment method: Loosen the screw nut and locking handle on the hand wheel on the rear of the spindle holder, the pulsating handwheel, the clockwise direction is raised, the counterclockwise direction is lowered, and the lowest point of the saw blade is not in contact with the track, Otherwise it will wear the saw blade, the height is adjusted, the hand wheel on the cap and lock the handle lock.
2.Adjust the pressure wheel seat
According to the thickness of the processing of wood, you can adjust the pressure wheel, loosen the pressure wheel seat lock the handle, shake the lift hand wheel, you can adjust the pressure wheel, clockwise for the rise, counterclockwise to decline, Until the roller can be lower than the wood about 2-2.5mm, and then press the wheel seat lock handle tightened to use.
3.Feeding speed adjustment
According to the wood processing accuracy and wood wood can adjust the speed of the feeding track (adjust the handle in the machine tool control box on the underside), and then release the locking handle, dial the adjustment handle, adjust the feeding speed, and then lock Tight handle.
4.Use and regulation of lubricating oil pump
Lubricant pump main power supply starts when the pump oil, and then according to the set time and the amount of oil supply automatically stop the oil supply.
(A)Installation:
The multi rip saw machine on the level of the ground, with cement will be four feet screw irrigation, and then adjust the level, and the screw can be pressed, can also be placed directly on the level of the ground, proofreading level can, and then select enough power And machine power supply connection.
(B)To adjust:
1.Adjustment of saw shaft
According to the wood and quality requirements to be processed to choose a good saw blade, in the case of high precision, should choose the number of teeth more slices better, and according to the size of the blade diameter and sawing depth, the blade spindle Up and down to adjust.
Adjustment method: Loosen the screw nut and locking handle on the hand wheel on the rear of the spindle holder, the pulsating handwheel, the clockwise direction is raised, the counterclockwise direction is lowered, and the lowest point of the saw blade is not in contact with the track, Otherwise it will wear the saw blade, the height is adjusted, the hand wheel on the cap and lock the handle lock.
2.Adjust the pressure wheel seat
According to the thickness of the processing of wood, you can adjust the pressure wheel, loosen the pressure wheel seat lock the handle, shake the lift hand wheel, you can adjust the pressure wheel, clockwise for the rise, counterclockwise to decline, Until the roller can be lower than the wood about 2-2.5mm, and then press the wheel seat lock handle tightened to use.
3.Feeding speed adjustment
According to the wood processing accuracy and wood wood can adjust the speed of the feeding track (adjust the handle in the machine tool control box on the underside), and then release the locking handle, dial the adjustment handle, adjust the feeding speed, and then lock Tight handle.
4.Use and regulation of lubricating oil pump
Lubricant pump main power supply starts when the pump oil, and then according to the set time and the amount of oil supply automatically stop the oil supply.
