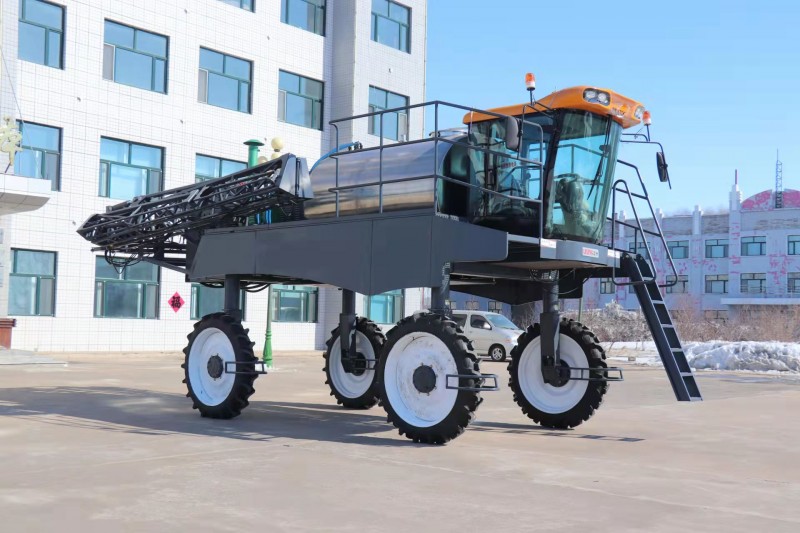

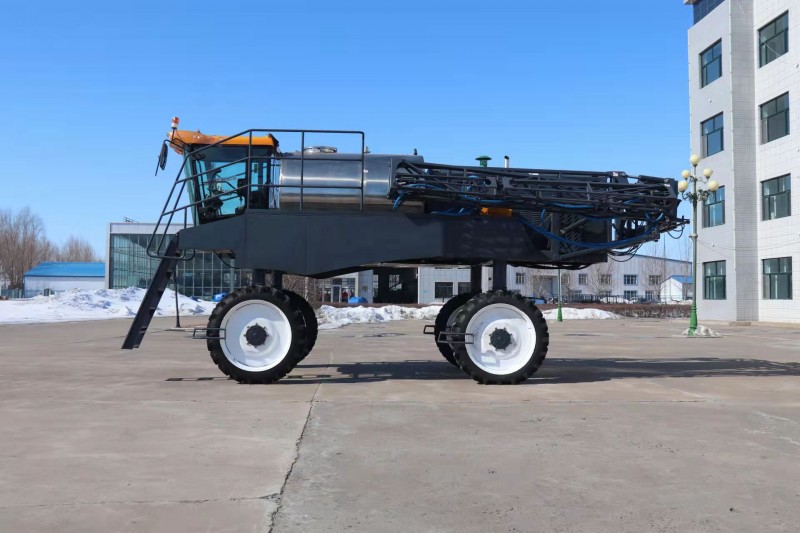

Large height gap spray rod sprayer 5000L260HP

Brand: petros
Area: China Shandong
Validity: forever

Information of the company


Details

5000L260HP Large height gap spray rod sprayer


Model

3wpz-5000y

Pump model

MB6360

Nozzle type

NO.3

Turnaround mode

Hydraulic power/four wheel steering/four wheel drive

Pump type

Oil film pump

Atomization angle

110°

Stirring method

Jet mixing

Maximum flow of liquid pump

360L/min

Nozzle flow

1.2 L/min

Ground clearance height

1.9m

Maximum speed of liquid pump

600r/min

Nozzle distance between

500-700mm(Customizable)

Track wicth

2.6-3.2m

Pump pressure

3.0mpa

Storage Battery

150Ah/ 12V*2

Three stage fittration system

Irrigation screen+filter+

nozzle

Container capacity

5000L

cab

Independent closed

System working pressure

0.3-0.5mpa

Outline dimension

7900×4600×3800

Driving indoor

Air conditioning(optional precision sprayer)

Rate of travel

30km/h

Cleaning Water tank

15L

Front tire type

9.5-38

Operating speed

8-18km/h

Length of spray Rod

27m

Rear tire type

9.5-38

Power /speed

162kw-2200r/min((220hp)

Spray height

0.65-2.8m

Gear position

Stepless speed change

Discharge stage

China Ⅲ Emission

Boom

Hydraulic fold and lift

Machine weight

8600kg
