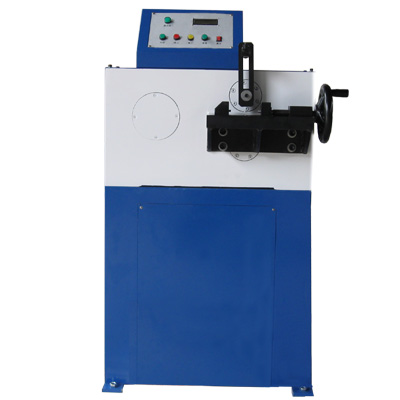

2/3/5mm hydraulic impact specimen notch broaching machine
Application
Notch Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction
machine manufacturer industries and departments of science &research
Standards
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
Features
3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance
ability and long serving life;
3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
Main Technical Specifications
|
Shape of sample notch |
V2 mm,U2mm,(U3mm, U5mm alternative) |
|
Sample size |
(10, 7.5, 5)x1055mm |
|
Cutting mode |
Hydraulic |
|
Journey of broach |
V2, U2, U3 350mm; U5 380mm |
|
Broaching Speed |
2.5m/min |
|
Broach material |
W18Cr4V |
|
Power supply |
380V 50Hz 0.4Kw |
|
Max. Dimension |
660500x1240mm |
|
Weight |
200kg |
