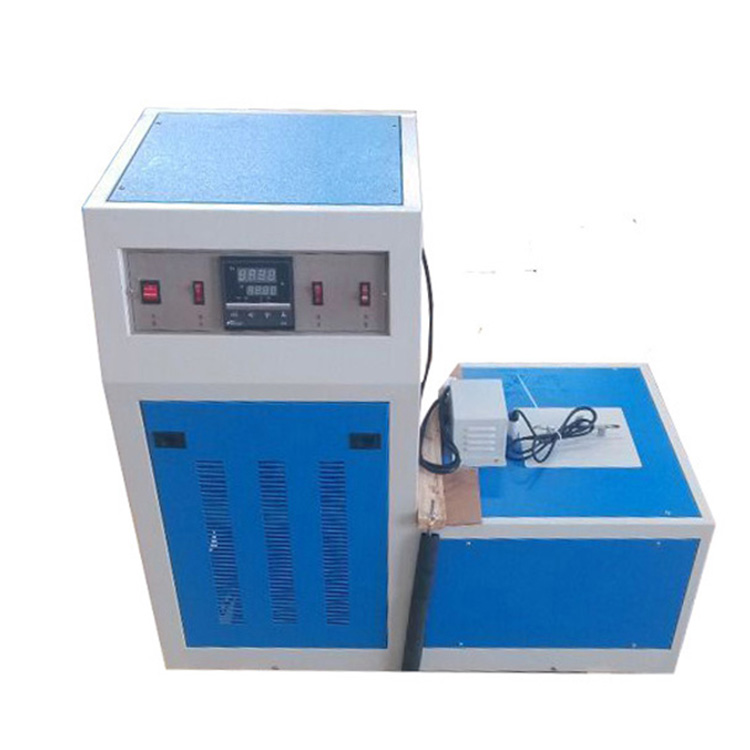

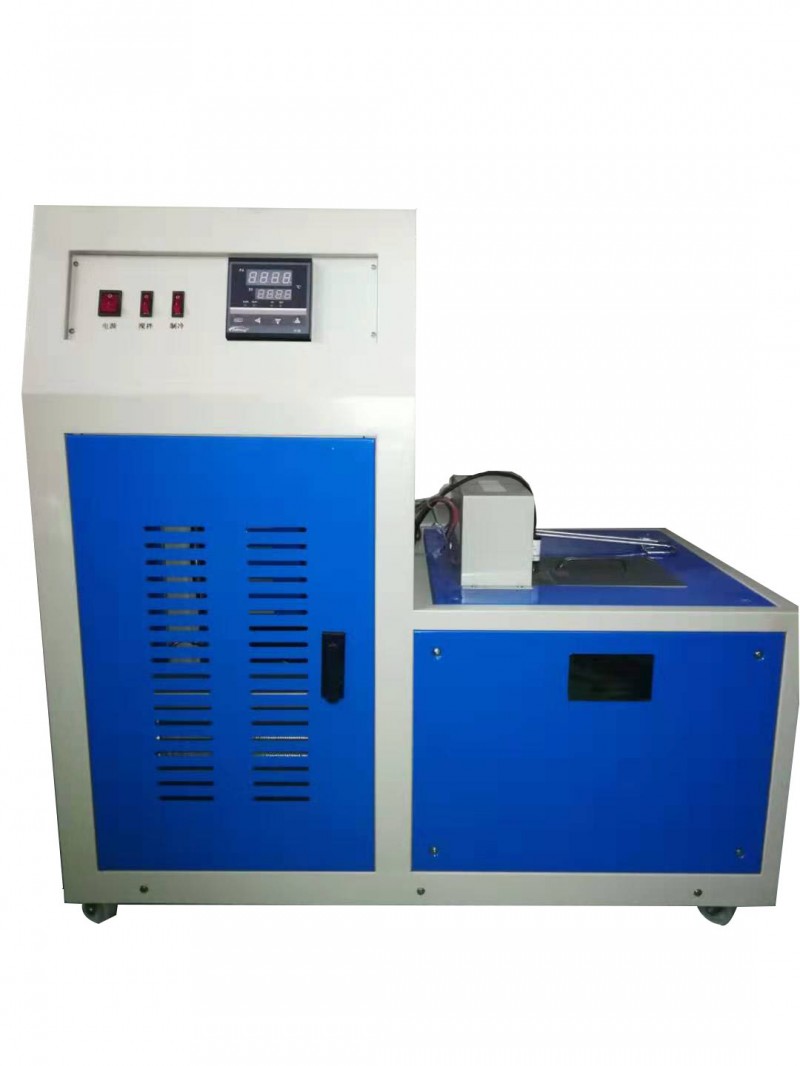

-60 ℃ metal Impact Specimen Low Temperature Bath
Application
The mechine is designed according to Charpy notch Impact Test Method for metal Material, and adopts compressor cooling
technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact
specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and
keeping temperature to impact specime
Main Specifications
|
Model |
DWC-40 |
DWC-60 |
DWC-80
|
DWC-100 |
|
Temperature range |
+30~-40° |
+30~-60° |
+30~-80° |
+30~-100° |
|
Temperature Control Accuracy |
±0.5° |
|||
|
Temperature dropping speed
|
+30°C~0°C 1.2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
+30°C~0°C 2°C/min |
|
0°c~-20°C 0.8°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
0°c~-20°C 1.5°C/min |
|
|
-20°C~-40°C 0.5°C/min |
-20°C~-40°C 1.0°C/min |
-20°C~-60°C 1.0°C/min |
-20°C~-40°C 1.0°C/min |
|
|
-40°C~-60°C 0.7°C/min |
-60°C~-80°C 0.7°C/min |
-60°C~-100°C 0.7°C/min |
||
|
Cold Room Volume |
150×505×240mm |
|||
|
Dimensions |
900×505×850 mm
|
900×505×850 mm
|
900×505×850 mm
|
1500×1200×1200 mm
|
|
Box Material |
Steel Spray |
|||
|
Mode of refrigeration |
Compressor refrigeration |
|||
|
Cooling Medium |
Ethanol or other unfrozen liquid |
|||
|
Power |
7Kw |
7Kw |
7Kw |
7Kw |
Standards
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
