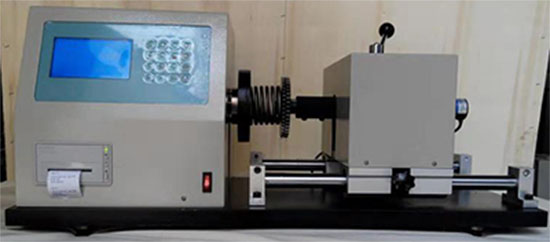

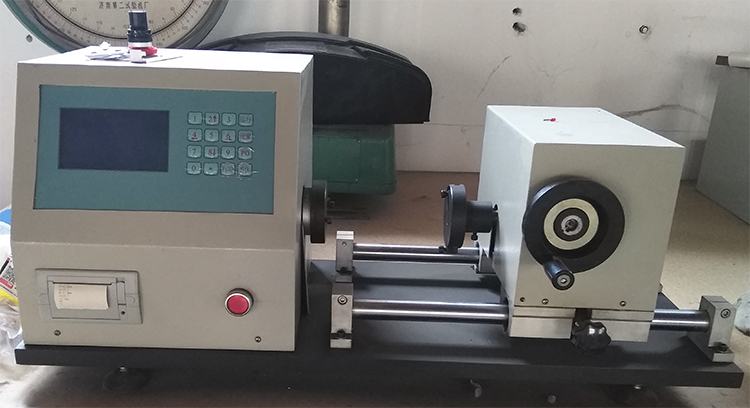

50NM horizontal spring torsion testing machine tester
Application
This machine is mainly applicable to do torsion test for various torsion spring, disc spring, volute spring, ect. Under certain rotor angl
e , to test spring torque, or under certain torque, to test spring rotor angle. Also used for torsion test of other elastic element and fricti
on mechanism. Widely used by spring factory, electric equipment manufacture, power machinery factory, colleges and universities a
nd scientific research, etc.
Standard
JB/T 9370-1999,JJG 269-2006 torsion test standard and material testing method,
ISO,JIS,ASTM,DIN and other international standard
Main technical parameter:
|
Item |
Specification |
|
Type |
Horizontal |
|
Test class |
1 class |
|
Model |
TNZ-200 |
|
Max test torque (N/M) |
200 |
|
Mini spring measuring value(N/M) |
0.1 |
|
Max torsion rotor angle measuring value(°) |
9999.9 |
|
Mini torsion rotor angle measuring value(°) |
0.1 |
|
Test force accuracy |
≤±1.0% |
|
Angle measurement accuracy |
≤±1.0% |
|
Deformation accuracy |
≤±(50±0.15) L |
|
Max distance between torque platen (MM) |
200MM |
|
Working voltage |
AC220V±10%, 50HZ |
Features
1. Digital display torsion torque, angle
2. With function of peak value
3. With function of overload protection
4. With function of stiffness calculation
5. With function of printing test result
6. Spin left or right arbitrary choice, easy operation, fast test, convenient clamping
7. Auto type spring torsion testing machine with electronic hand wheel
