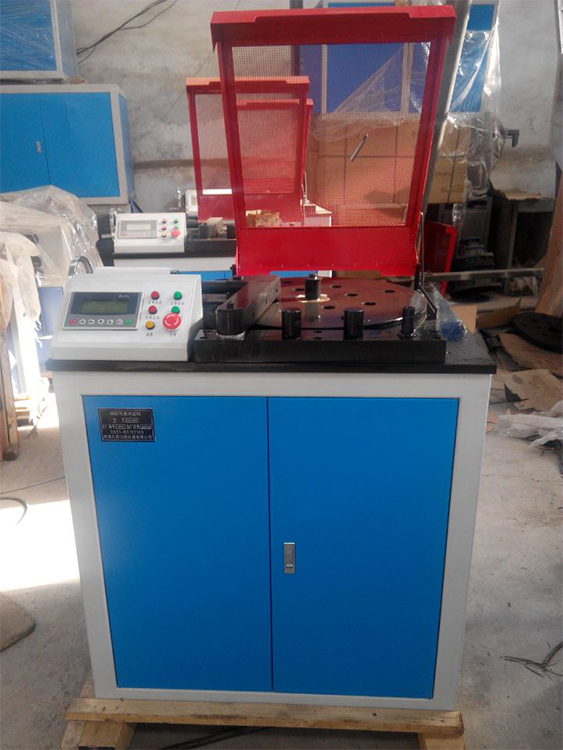

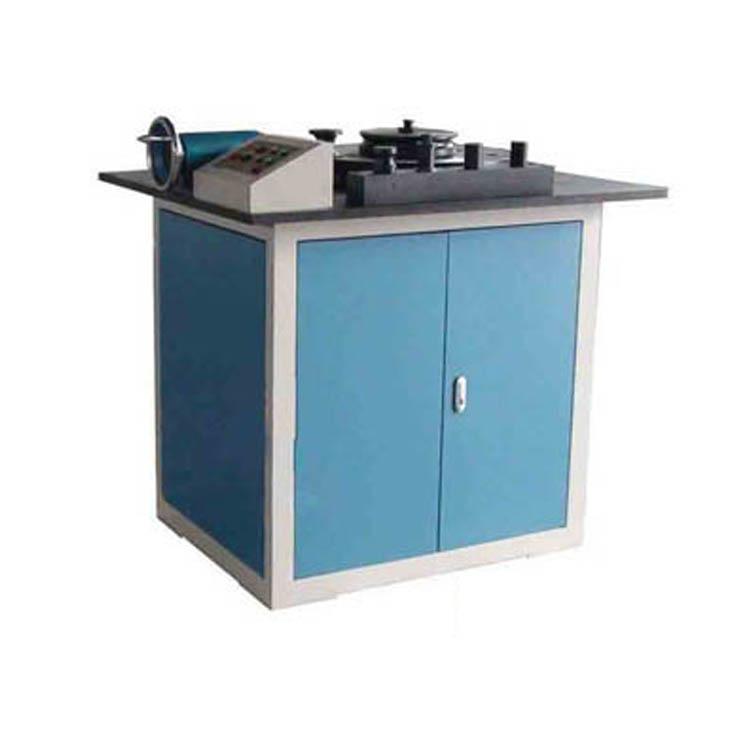

60B weld steel pipe bending testing machine tester equipment
This testing machine is a steel pipe bending test machine developed according to GB/T244-2020, ISO8491:1998 "metal Materials Pipe Bending Test Method", ISO 559 and is suitable for steel pipes with a nominal diameter not greater than 65mm (≤DN50). This product is widely used in testing units, metal pipe factories and pipeline enterprises to test the bending properties of metal pipes.
The steel pipe bending testing machine only needs to replace the corresponding bending sleeve, adjust the bending radius and replace the roller for steel pipe samples of different nominal diameters. The equipment has reliable precision, convenient use and long service life.
Technical parameter
|
Model |
EHG-S50 |
|
Steel pipe size (DN) |
DN15(Φ21), DN20(Φ26), DN25(Φ33), DN32(Φ42), DN40(Φ48) , DN50(Φ60) |
|
Bending angle |
0°-90° |
|
Working rotation speed |
≤1.4 r/min |
|
Angle accuracy |
±1.5° |
|
diameter of steel pipe |
DN15, DN20, DN25, DN32, DN40, DN50 |
|
Roller radius |
R10, R13, R16.5, R21, R24, R30 |
|
Test method |
1. Manual jog control bending angle, you can stop anytime. 2. Automatic control bending angle, when the set angle is reached, that machine will automatically stop.
|
|
Size |
970*860*1170mm |
|
Weight |
700kg |
|
Power |
3-phase, AC380V, 50HZ,1.5kw |
