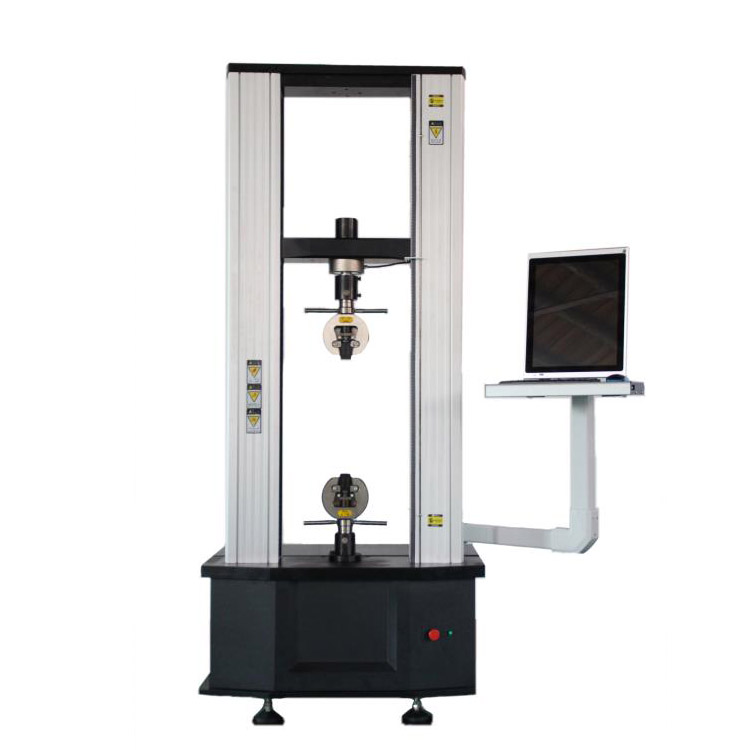

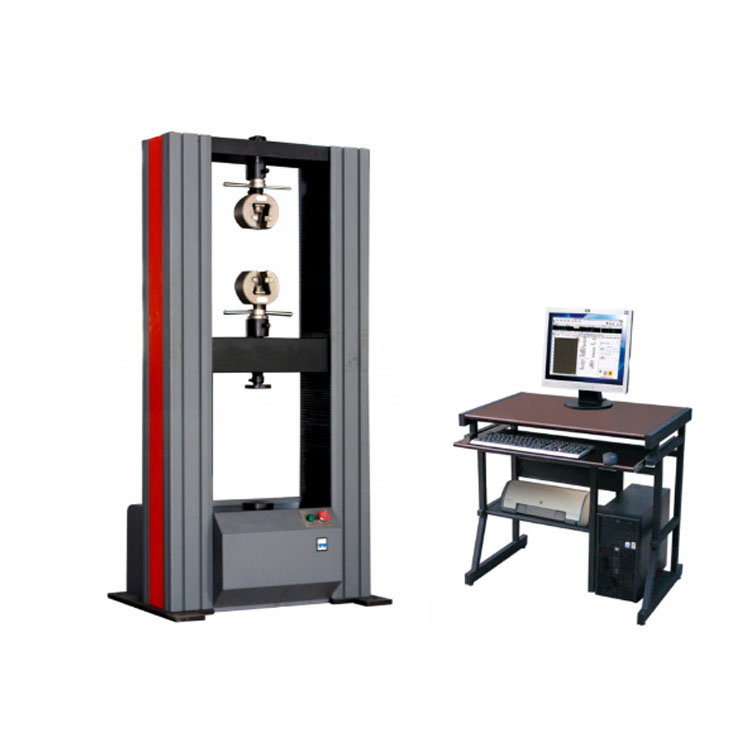

50KN gas spring tensile and compression testing machine
This machine adopts electric loading and deceleration system to reduce the speed and drive the precision ball screw
to load, which realizes the digital adjustment of the data acquisition and control process. It can test and analyze the
tensile force, pressure,displacement and stiffness of precision springs such as tension springs, compression springs,
disc springs, tower springs, leaf springs, circlips, leaf springs, composite springs, gas springs, mold springs, and
special-shaped springs.
The machine has no pollution, low noise, high efficiency, and has a wide range of speed regulation, which fully
meets therequirements of relevant national and international standards.
The machine is widely used in aerospace, machinery manufacturing, spring production enterprises, home
appliances and other industries for spring inspection and analysis. It is an ideal test equipment for research
institutes, universities, industrial and mining enterprises, technical supervision, commodity inspection and arbitration
departments.
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D882, ASTM D3039,ASTM, D3479, ASTM D7791, ASTM D412,
ISO6892
|
Model
|
TLS-10/20/30
|
TLS-50
|
TLS-100
|
TLS-200/300
|
|
Max. Testing force
|
10/20/30
|
50
|
100
|
200/300
|
|
Structure
|
Door Type
|
|||
|
Control type
|
Computer control
|
|||
|
Accuracy
|
1 class
|
|||
|
Testing range
|
2%～100%F·S
|
|||
|
Relative error of test force indication
|
≤±1%
|
|||
|
Relative error of displacement indication
|
≤±1%
|
|||
|
Displacement display resolution
|
0.01mm
|
|||
|
Deformation indication error
|
≤±（50+0.15L）um
|
|||
|
Speed range
|
0.05-1000 mm/min
|
0.05-500 mm/min
|
0.05-500 mm/min
|
0.05-200 mm/min
|
|
Diameter of compression plate
|
110mm
|
|||
|
Power
|
AC220V±10%，50Hz
|
|||
