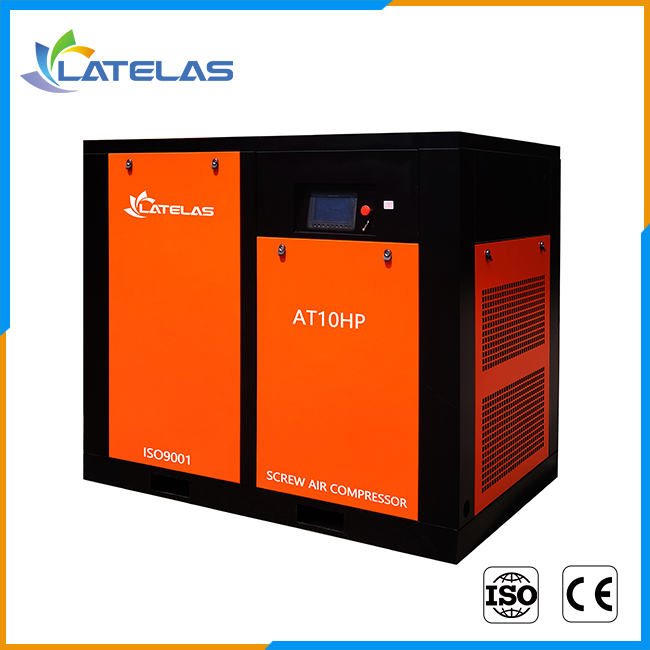

AT-10HP

portant;"> Model	portant;"> AT-10HP	portant;"> AT-15HP	portant;"> AT-20HP	portant;"> AT-30HP	portant;"> AT-50HP	portant;"> AT-60HP
Motor Power	7.5	11	15	22	37	45
Capacity/Pressure (m3/min/MPa)	1.2/0.7	1.71/0.7	2.3/0.7	3.8/0.7	6.4/0.7	8.5/0.7
	1.1/0.8	1.65/0.8	2.25/0.8	3.6/0.8	6.2/0.8	8.0/0.8
	0.9/1.0	1.32/1.0	1.8/1.0	3.0/1.0	5.6/1.0	7.5/1.0
	0.8/1.2	1.1/1.2	1.6/1.2	2.6/1.2	5.0/1.2	7.0/1.2
Lubricating oil(L)	12	16	16	22	26	26
Noise db(A)	60-70±2	60-70±2	60-70±2	60-70±2	60-70±2	60-70±2
Length(mm)	780	1050	1050	1300	1470	1460
Width(mm)	600	700	700	850	1000	1000
Height(mm)	1020	1150	1150	1100	1380	1380
Weight(Kg)	215	335	335	465	630	825
Model	AT-75HP	AT-100HP	AT-125HP	AT-150HP	AT-175HP	AT-200HP
Motor Power	55	75	90	110	132	160
Capacity/Pressure (m3/min/MPa)	10.5/0.7	13.2/0.7	16.2/0.7	21.0/0.7	24.6/0.7	31.0/0.7
	10.0/0.8	13.0/0.8	15.8/0.8	20.0/0.8	23.0/0.8	30.0/0.8
	8.5/1.0	10.9/1.0	14.0/1.0	18.0/1.0	21.0/1.0	26.0/1.0
	7.6/1.2	9.8/1.2	12.8/1.2	16.0/1.2	18.8/1.2	22.0/1.2
Lubricating oil(L)	54	54	72	90	90	90
Noise db(A)	70-76±2	70-76±2	70-76±2	70-76±2	70-76±2	70-76±2
Length(mm)	1900	1900	1900	2020	2020	2360
Width(mm)	1250	1250	1250	1590	1590	1610
Height(mm)	1600	1600	1600	1810	1810	1860
Weight(Kg)	1130	1230	1325	1520	1710	1850
