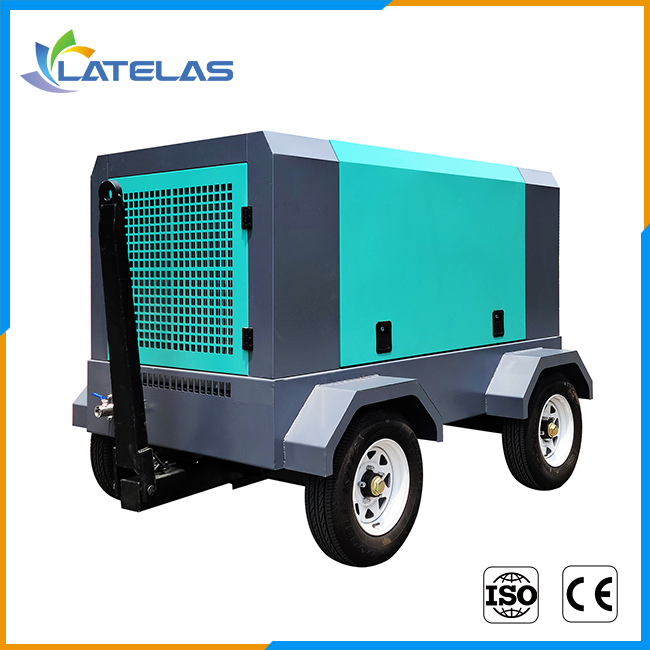

AT 75A

Area: China Shandong
Validity: forever

Information of the company


Details

portant;"> Model portant;"> AT 75A
Compression Normal state
Gases Air
No. of compression stage Two stage
Atmospheric pressure 1.033Kg/cm2A
Cooling Way Air Cooling
Environment temp ≤46℃
Relative humidity 80%
Discharge pressure 0.8 Mpa
Volume Flow 12.5 m³/min
Driving Way Driven shaft coupling
Power) 55 Kw / IP54
Horsepower 75 HP
Voltage /(Frequency 380 V / 50 Hz
Starting Method Star -△
Motor Speed 1500 rpm/min
Insulation grade F
Outlet Size G1-1/2 & G1
Size 2700*1700*1900 mm
Weight 1500 Kg
Noise Leve 80~82±3 dB(A)
Oil contents ≤3~5 ppm
