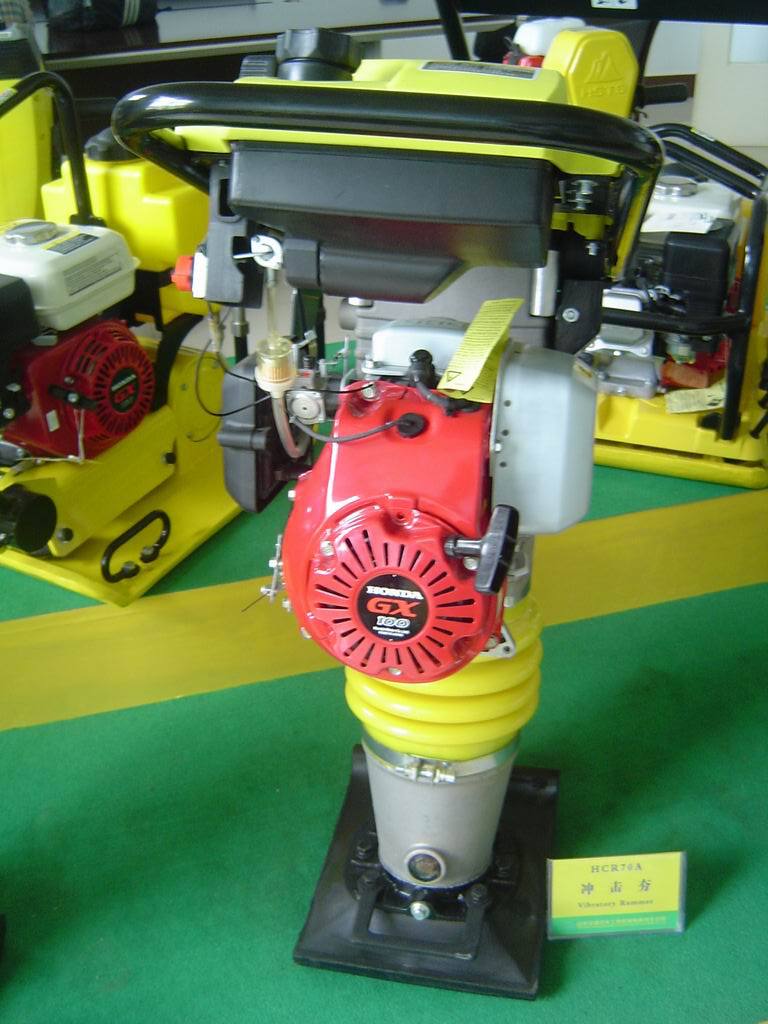

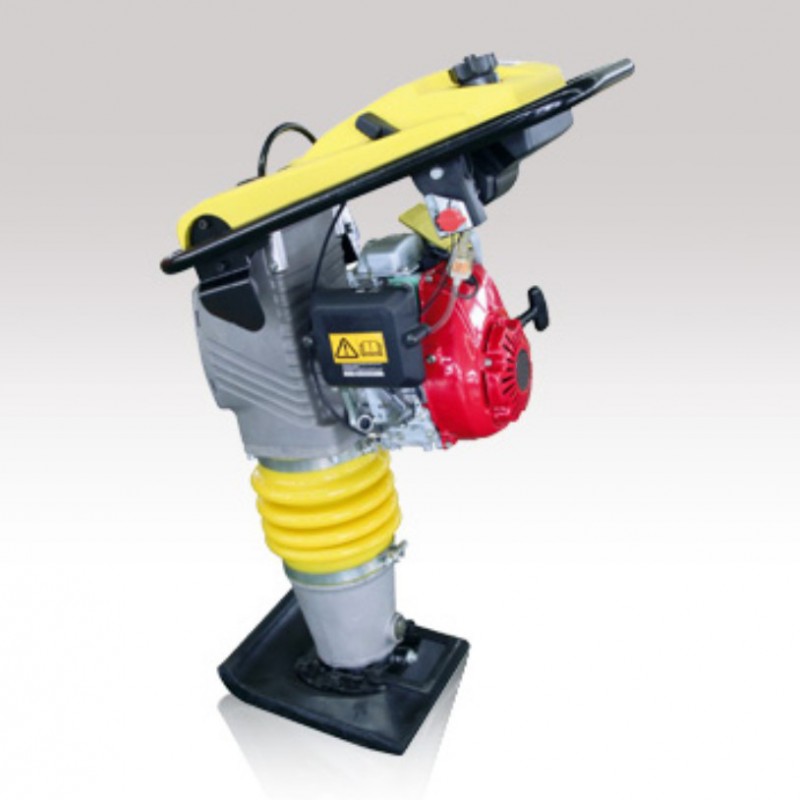

Portable four stroke impact rammer
sales manager:Ella,M/B/wechat/whatsapp:+86-18653926025
E-mail:fanhongxi@126.com,wesite:www.fanhongxi.com

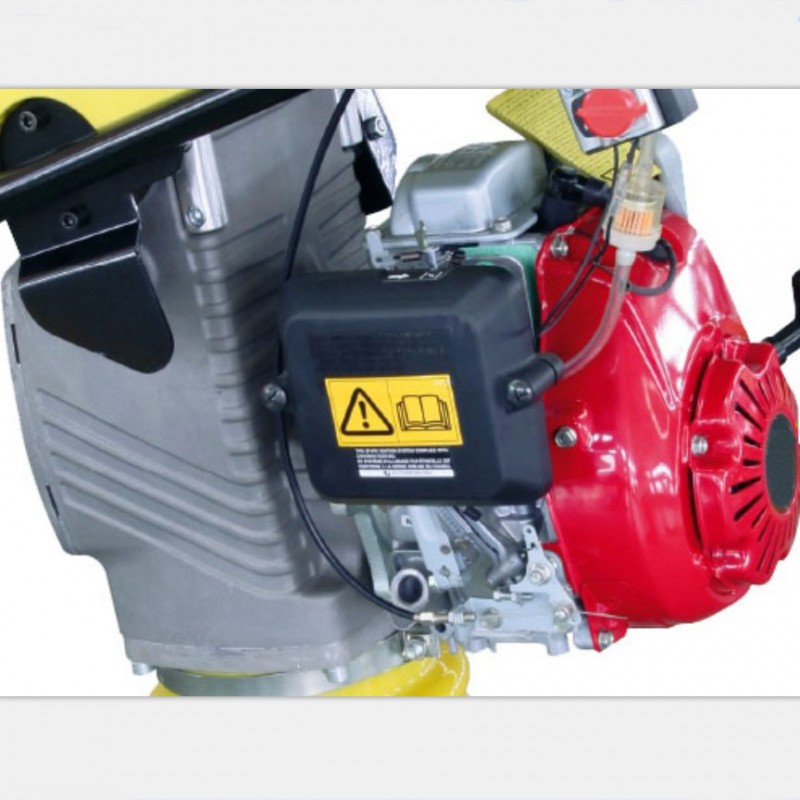

1. Adopt original imported Honda GX100 four-stroke engine, equipped with double air filter filter system, better protect the service life of the gasoline engine.
2. Adopt EPA oil pipe, and equipped with fuel earphone filter system.
3. The machine and operating mechanism are connected by high elastic natural rubber shock absorbing column. Ductile cast iron with rubber rammer, impact resistant.
4. metal parts are processed by electrophoresis, plastic spraying or paint baking, which can better protect metal parts and play an anti-rust effect.
HondaGX100
model
HCR70A
fitted power
impacting frequency
700/min
striking energy
15Kn
jump height
65MM
rate of travel
17m/min
power
2.2kw/4000r/min
Ram plate size
280-335mm
net weight
75kg
gross weight
92kg
pakege size
1080-410-750mm
